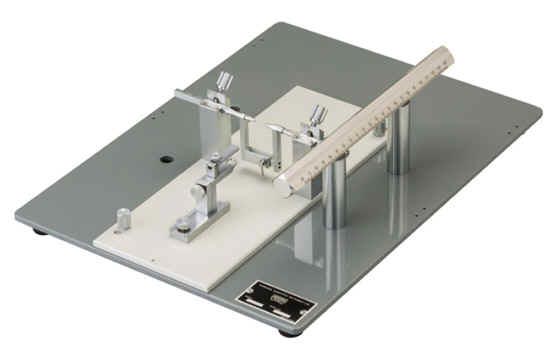

SR-5R-HT

Stereotaktischer Rahmen für Ratten
Beschreibung

Fixing the head of a rat firmly with ease and accuracy.

These stereotaxic instruments are Narishige's successful SR series designed specifically for rats, featuring various special functions to fix the head more firmly. Smooth manipulation of clamping actions with one hand is made possible by the auxiliary ear bar, and the operator can check that the external auditory canal is fixed correctly by feeling with the fingertips. The mouth and nose fixing clamp is designed thin and small, to match the dimensions of a small rat's mouth, allowing easy confirmation of teeth fixation. In addition, the instrument allows easy back/forward and up/down position adjustment. An AP frame bar is provided, to which many different types of accessories can be attached along with the attached micromanipulator. The SR-5R-HT has one AP frame bar, while the SR-6R-HT has two.

Accessories included

EB-3A   Ear Bars for Rats (in a pair)
EB-4N   Auxiliary Ear Bar for Rats

Stereotaxic micromanipulators such as the SM-15 are sold separately.



Dimensions, Weight

SR-5R-HT     W 400 × D 300 × H 110 mm, 8.75 kg
