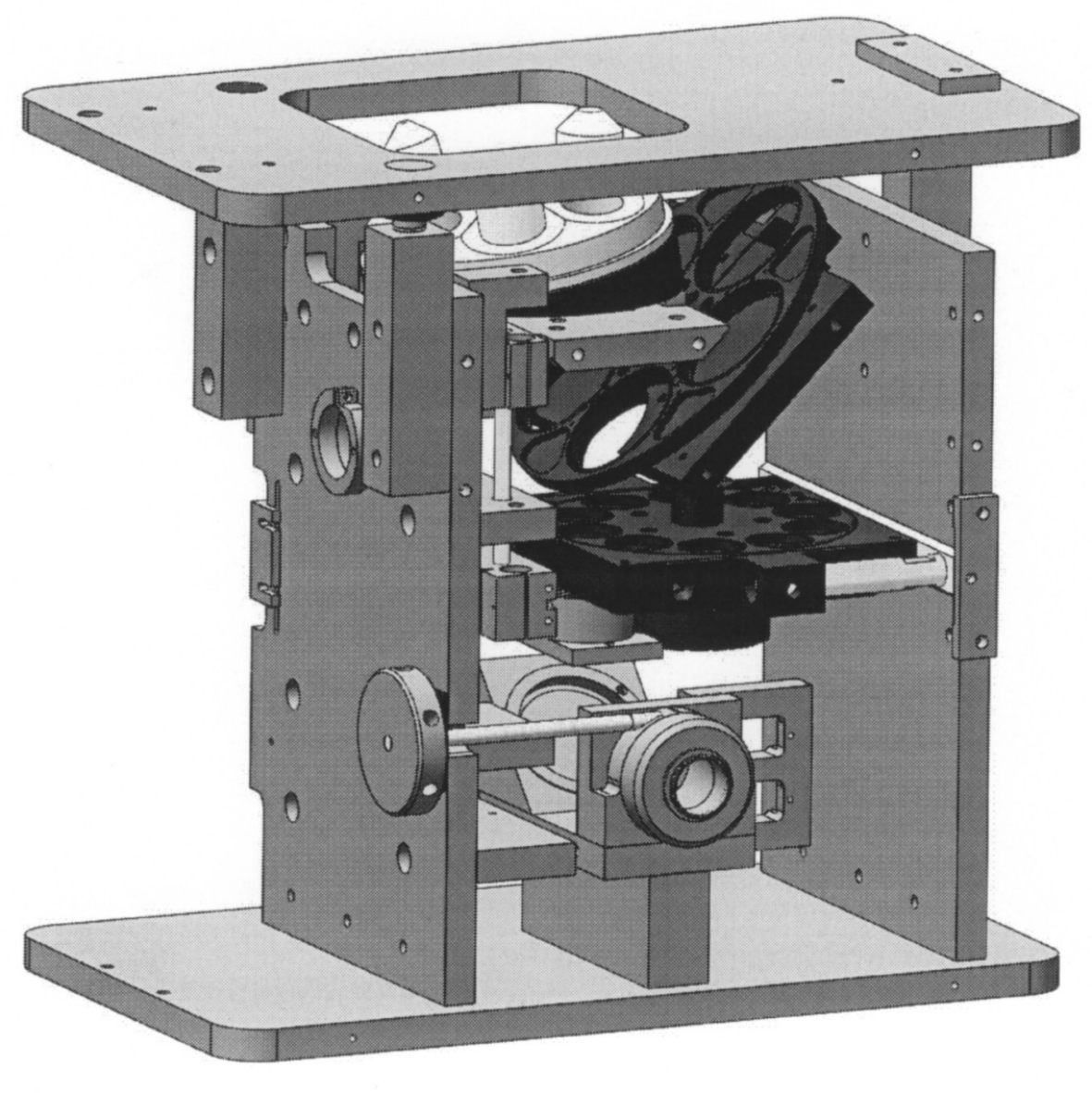

Sutter Automated Microscope System (AMS) is an inverted with a large array of automated features including fast focus, dichoic changer, emission wheel and objective turret. The AMS was designed to be used with the Sutter Lambdas LS xenon lamp, which incorporates the ability to automate excitation filters and change neutral density and shutter light. When used with the excitation wheel, the design can incorporate the revolutionary Sutter ,SmartShutter. A transmitted light version of AMS is also available with a 35mm SmartShutter for automated control of transmitted light.

The 45 degree dichroic wheel makes accurate and fast dichroic changes possible^. This "non-cube" design means there are fewer degrees of freedom to produce registration errors and low mass that allows for faster switching. The emission filter wheel is integral to the scope and placed in the infinity path. This design eliminates non-linearities associated with an emission filter wheel mounted outside the scope in the convergent light path leading to the camera. Finally, the unit is capable of accepting a number of motorized stages including the new 3-Dimensional Motorized Stage (3DMS) from Sutter.

Please contact Science Products  for further information on availability of the Automated Microscope System.
