RMI

Effective 1/6/2013

MONOPOLAR ELECTRODES SERIES 300

MODEL NE-300

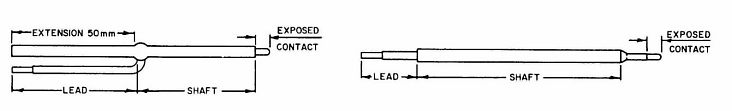

NE-300 monopolar electrode is manufactured from fully hard straightened stainless steel*. A flexible lead is soldered at a predetermined length from the contact. The 50mm extension of the shaft is held in the electrode holder and can be cut off after insertion.

MODEL RNE-300    MODELSNE-300SEMI-MICRO
Model RNE-300 is a rigid monopolar electrode with a 0.2mm contact diameter extending from a 0.2mm shaft.
SNE-300 is a semi-micro monopolar electrode with contact diameter and exposure one half of those of  the RNE-300. This electrode offers the user a  monopolar electrode with 0.1 mm tip.

* All Electrodes shown in this page are from stainless steel, most of them are available in platinum. Prices and availability on  request.
  See also introduction.

                                        MODEL RNEX-300                                MODEL SNEX-300 SEMI-MICRO
Model RNEX-300 and SNEX-300 positive length monopolar electrodes are ideal for chronic applications. This series features a small mount at a specified distance from contact. Exiting from the mount is a 50mm extension. [There is no electrical connection between the active portion of the electrode and the extension.] This extension is held in the electrode holder and can be cut off after insertion, leaving the minimum protrusion. The mount will give a firm base when cement is used to affix electrode to site. Contact diameters and exposure are the same as the RNE-300 and SNE-300.

SEMI – MICRO

SPECIAL ORDERS
Different contact separation, exposure, length, etc., on these electrodes can be supplied. Please specify changes and request quotation.
NOTE : Electrodes shown on this page cannot be cut to a shorter length. Exact length must be indicated.
