Metal
- Electrodes, concentric bipolar
Stainless
Steel |
RMI |
|
Effective
1/6/2013 |
|
|
|

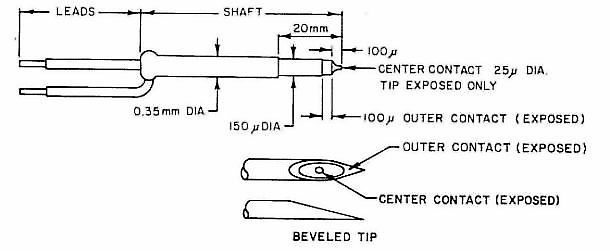

MCE-100
model is a concentric bipolar electrode with an outer
contact diameter of 150 microns and 25 microns inner
contact diameter. They can be ordered with standard
contacts or beveled as illustrated. Electrodes up to
20mm shaft length are made with 150 micron diameter
stainless tubing. For added rigidity, electrodes over
20mm are manufactured as shown. The MCE-100 electrodes
cannot be cut to a shorter length. Please request a
quotation for different contact dimensions. Electrodes
are available in 5-100mm shaft length.
|
MODEL |
Shaft
Length |
Price
each |
Minimum Order |
|
MCE-100
|
10-50mm
|
91,50
|
6 |
|
55-100mm
|
98
|
6 |
|
|
|
|
Concentric
Bipolar Electrodes
Series 100
|
|
MODEL
NE-100
MODEL

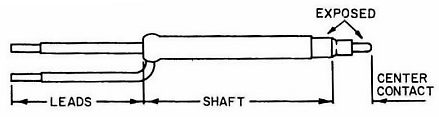

NE-100 is a concentric bipolar
electrode.
The shaft is 304 stainless steel tubing straightened
for accurate placement. The contact exposures and
separation are rigidly controlled during manufacture
for accuracy and repeatability. Refer to chart for
standard dimensions.
|
|
|
|
|
MODEL
NEX-100
MODEL
SNEX-100 SEMI-MICRO

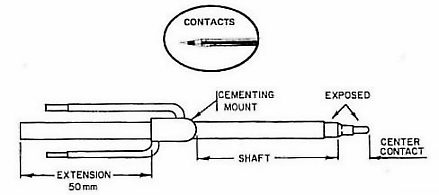

NEX-100
and SNEX-100 positive length concentric bipolar
electrodes are ideal for chronic applications. This
series features a small mount at a specified fixed
distance from the contacts. Exiting from the mount is
a 50mm extension. [There is no electrical connection
between the active partion of the electrodes and the
extension.] This extension is held in the electrode
holder and may be cut off after insertion, leaving the
minimum protrusion. The mount will give a firm base
when cement is used to affix electrode to site.
Contact diameter and exposure are the same as NE -100
and SNE -100. Refer to charts for dimensions.
|
|
| MODEL |
Shaft
Diameter |
Shaft
Length
in 1 mm increments |
Lead
Diameter |
Contact
Diameter |
Contact
Length |
Price
each |
Minimum
Order |
| NE-100 |
0.5mm |
|
5-50mm
|
|
51-100mm
|
|
101-150mm
|
|
Inner:
0.2mm
Outer: 0.2mm |
Center:
0.2mm
Outer: 0.5mm |
Center
contact protrudes from shaft 1.0mm and is
exposed 0.5mm.The
shaft (outer contact) is exposed 0.5mm |
|
|
|
NEX-100 |
0.5mm |
|
5-50mm
|
|
51-100mm
|
|
101-150mm
|
|
Inner:
0.2mm
Outer: 0.2mm |
Center:
0.2mm
Outer: 0.5mm |
Center
contact protrudes from shaft 1.0mm and is
exposed 0.5mm.The
shaft (outer contact) is exposed 0.5mm |
|
|
|
|
SEMI
MICRO
| MODEL |
Shaft
Diameter |
Shaft
Length
in 1 mm increments |
Lead
Diameter |
Contact
Diameter |
Contact
Length |
Price
each |
Minimum
Order |
|
SNE-100
|
0.25mm |
|
5-50mm |
|
51-100mm
|
|
101-150mm
|
|
Inner:
0.1mm
Outer: 0.2mm |
Center:
0.1mm
Outer: 0.25mm
|
Center
contact protrudes from shaft 0.75mm and is
exposed 0.25mm.The
shaft (outer contact) is exposed 0.25mm |
|
|
|
SNEX-100
|
0.25mm |
|
5-50mm |
|
51-100mm
|
|
101-150mm
|
|
Inner:
0.1mm
Outer: 0.2mm |
Center:
0.1mm
Outer: 0.25mm
|
Center
contact protrudes from shaft 0.75mm and is
exposed 0.25mm.The
shaft (outer contact) is exposed 0.25mm |
|
|
|
|
|
|
SPECIAL ORDERS
Different contact separation, exposure, length, etc.,
on these electrodes can be supplied. Please specify
changes and request quotation. NOTE : Electrodes shown
on this page cannot be cut to a shorter length. Exact
length needed must be indicated.
|
|
|
Prices
excluding packing, shipping, duty (where
applicable), local sales taxes (where
applicable). |
|
Prices
and specifications are subject to change without
special notice. |
|
Below
delivery conditions are for Germany only,
delivery conditions for outside of Germany
upon request.
|
|
Preis: |
in
EURO, zzgl. 19% Mwst. |
|
Lieferung: |
frei
Haus in Deutschland ab 90,- EURO (netto)
Warenwert |
|
|
|
bei
Bestellungen unter 90,- zuzόglich 18,00 Porto- und Bearbeitungsanteil |
|
Lieferzeit: |
ab
Lager Hofheim, sonst ca. 4-6 Wochen |
|
Zahlung: |
14
Tage rein netto |
|
|
|
