Effective 1/6/2013

BIPOLAR ELECTRODES SERIES 200*

MODEL NE-200

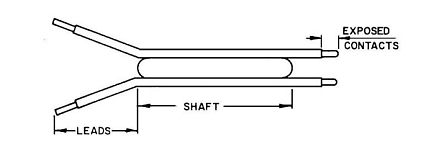

Model NE -200 bipolar electrode consists of two 0.2mm insulated stainless steel wires separated by a 0.5mm shaft. The entire electrode is insulated with epoxylite except for the contacts. Refer to chart for standard dimensions.

MODEL SNE-200 SEMI-MICRO
Model SNE -200 is a semi-micro bipolar electrode. Two 0.1 mm insulated stainless steel wires are separated by a 0.25mm shaft. The entire electrode is insulated with epoxylite except for the contacts. Refer to for standard dimensions.

                                            MODEL NEX-200                                MODEL SNEX-200 SEMI-MICRO

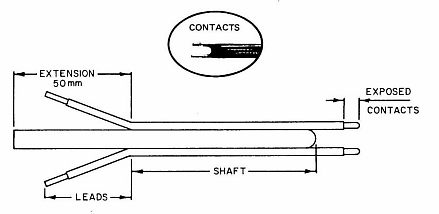

NEX-200 and SNEX-200 bipolar electrodes have a fixed length from the contact tip to the junction of the leads. The shaft extends from the junction for 50mm. This extension is held in the electrode holder and is cut off after insertion, leaving only the leads protruding. Refer to chart for standard dimensions.

SEMI – MICRO



MODEL	Shaft Length in 5 mm increments	Lead Diameter	Contact Diameter	Contact Length	Price each	Minimum  Order
SNE-200	5-50mm 51-100mm 101-150mm	0.1mm	0.1mm Separation 0.25mm	Contacts protrude from shaft 0.2mm and are exposed 0.25mm	39 € 40,50 € 67 €	10 10 8
SNEX-200	5-50mm 51-100mm 101-150mm	0.1mm	0.1mm Separation 0.25mm	Contacts protrude from shaft 0.2mm and are exposed 0.25mm	42 € 43,50 € 69,50 €	8 8 8

SPECIAL ORDERS
Different contact separation, exposure length, etc., on  these electrodes can be supplied. Please specify changes and request a quotation. If cementing mount is required at the lead junction,  please specify NEX-200M or SNEX-200M.

Alternative contact for 200 series. Contact exposure same as for standard models.
To order add letter B after 200, i.e. NE-200B.
