Metal - Electrodes, concentric bipolar
Tungsten

MICROPROBES

Effective 1/6/2013

MICROPROBES offers a variety of electrode configurations including tip profiles (see left), lengs, mounting schemes, stereotrode and bipolar as well as costum designs. See also
" Selecting the Optimum Electrode Configuration ".

CONCENTRIC  BIPOLAR  ELECTRODES

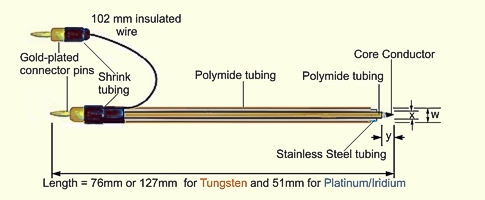

Concentric Electrodes, Tungsten, Standard Tip

with SS Tubing and Polymide Insulation

WE3CEA3
Length W X Y Tip Diameter Pkg of 5

76 mm

0.400 mm

0.126 mm

< 0.2 mm

2-3µ

310,00 €
WE3CEA5
Length W X Y Tip Diameter Pkg of 5

76 mm

0.450 mm

0.195 mm

< 0.3 mm

2-3µ

310,00  €
WE5CEA5
Length W X Y Tip Diameter Pkg of 5

127 mm

0.450 mm

0.195 mm

< 0.3 mm

2-3µ

345,00 €

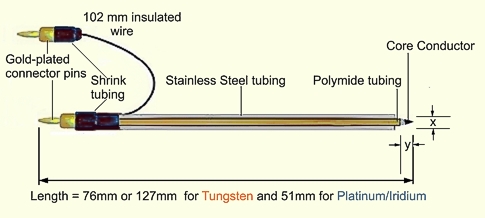

Concentric Electrodes, Tungsten, Standard Tip

with Exposed Metal Sheeld
WE3CEA3SS
Length W X Y Tip Diameter Pkg of 5

76 mm

0.325 mm

0.126 mm

< 0.2 mm

2-3µ

295,00 €
WE3CEA5SS
Length W X Y Tip Diameter Pkg of 5

76 mm

0.350 mm

0.195 mm

< 0.3 mm

2-3µ

295,00 €
WE5CEA5SS
Length W X Y Tip Diameter Pkg of 5

127 mm

0.350 mm

0.195 mm

< 0.3 mm

2-3µ

330,00 €
Prices excluding packing, shipping, duty (where applicable), local sales taxes (where applicable).
Prices and specifications are subject to change without special notice.
 Below delivery conditions are for Germany only, delivery conditions for outside of Germany upon request.
Preis:  in EURO, zzgl. 19% Mwst.
Lieferung: frei Haus in Deutschland
Lieferzeit: ca. 4-6 Wochen
Zahlung:  14 Tage rein netto
