Ag/AgCl Pellets & Disks |
IVM |
|
|
Effective 1/1/2011 |
|
|
|
|
|
Ag-AgCl
(silver-silver chloride) electrodes are available in a
variety of standard configurations for use in
electrochemistry, electrophysiology, and precision
bioelectric recording and stimulation.
Ag-AgCl electrodes made by IVM
have superior properties because they are made
with very high purity chemicals. A careful proprietary
process results in a fine grain, homogeneous mixture
of silver and silver chloride. The mixture is then
compressed and
sintered into the various configurations. A
pliable silver wire is imbedded in
the Ag-AgCl matrix to provide electrical
connection by soldering or other means.
The electrodes have the consistency of a soft metal
and are easily reshaped by sanding, filing, cutting
and drilling. They can be cemented and sealed to other
materials with epoxy adhesives. Electrochemically,
Ag-AgCl electrodes
are extremely stable and reproducible. The
presence of silver chloride in the silver matrix
allows the electrode to behave as a near perfect,
nonpolarizable (reversible) electrode.
Unlike plated or chlorided silver,
IVM Ag-AgCl electrodes are homogeneous
throughout. If the surface is damaged or contaminated,
a new surface can be exposed to restore the original
performance of the electrode.
Ag-AgCl electrodes are nontoxic
because of
their stability and reproducibility, Ag-AgCl
electrodes make excellent STANDARD and REFERENCE
electrodes.
|
|
|
|
|
|
Model |
Specification |
Price |
E-201 |
2,0mm dia. x 4,0mm pellet, 10mm exposed wire |
11,00 |
E-201M |
1,5mm dia. x 3,0mm pellet, 10mm exposed wire |
10,50 |
E-201ML |
1,5mm dia. x 3,0mm pellet, 70mm exposed wire |
14,50 |

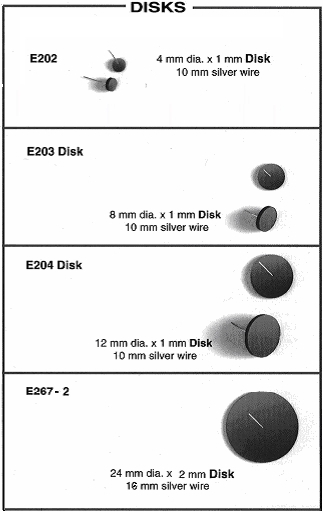

E-202 |
4,0mm dia. x 1,0mm disk, 10mm exposed wire |
9,50 |
E-202T |
4,0mm dia. x 2,0mm disk, 10mm exposed wire |
11,00 |
E-203 |
8,0mm dia. x 1,0mm disk, 10mm exposed wire |
15,00 |
E-204 |
12,0mm dia. x 1,0mm disk, 10mm exposed wire |
19,00 |
E-205A |
1,0mm dia. x 2,5mm pellet, 10mm exposed wire |
10,00 |
E-206 |
2,0mm dia. x 2,5mm pellet, 70mm exposed wire |
15,00 |
E-206A |
2,0mm dia. x 2,5mm pellet, 10mm exposed wire |
10,00 |
E-215P |
plastic insulated probe (flexible) 1,7mm dia. |
24,00 |
E-242 |
pre-wired disk electrode, 4,0mm dia. |
20,00 |
E-243 |
pre-wired disk electrode, 8,0mm dia. |
24,00 |
E-244 |
pre-wired disk electrode, 12,0mm dia. |
28,00 |

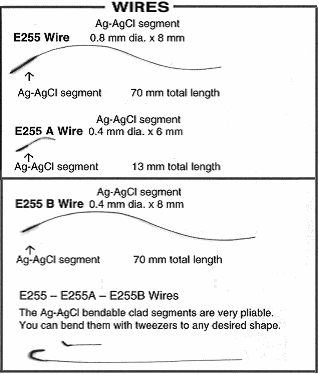

E-255 |
0,8mm dia. x 8mm, 70mm total length |
18,50 |
E-255A |
0,4mm dia. x 6mm, 13mm total length |
9,00 |
E-255B |
0,4mm dia. x 8mm, 70mm total length |
13,50 |
E-267 |
24,0mm dia. x 1,0mm disk, 10mm exposed wire |
55,00 |

|


|
|
|
| Ag/AgCl-Electrodes |
A-MSystems |
|
Effective
1/1/2010 |
|
Ag/AgCl
- Wires |
|
|
High purity silver (99.99%) wires are used to
fabricate these electrodes. The chloridized Ag/AgCl
Electrodes are made by a carefully controlled
electrochloridizing
process and yield better results than the
sintered electrodes for intracellular DC
recordings. The sintered Ag/AgCl electrodes are
made by a sintering proess which causes the AgCl
to adhere better to the wire than does
chloridizing, making these ideal for use in
longer term AC recordings.
|
|
Item |
Diameter |
Length |
Type |
Price
pkg/4 |
|
530800 |
200΅m |
101mm |
Chloridized |
35,00
|
|
531500 |
380΅m |
101mm |
Chloridized |
35,00
|
|
540800 |
200΅m |
101mm |
Sintered |
40,00
|
|
541500 |
380΅m |
101mm |
Sintered |
40,00
|
|
|
|
|
| Ag/AgCl
- Pellets and Disks |
|
|
These
disk and pellet electrodes have pure silver wire
embedded in the matrix. They are reusable,
resurfacable, and never need chloriding. They
are essentially non-polarizable. These
electrodes are commonly used as reference
electrodes. |
|
Item |
Diameter
Sensor |
Length
Sensor |
Exposed
Wire |
Price |
|
550008 |
0.8mm |
3mm |
70mm |
16,00
|
|
550010 |
1mm |
2.5mm |
70mm |
17,00
|
|
550015 |
2mm |
4mm |
70mm |
17,00
|
|
550020 |
4mm |
1mm |
70mm |
18,00
|
|
550025 |
8mm |
1mm |
70mm |
18,00
|
|
|
|
|
|
|
|
Prices exclude postage and packaging, duty (where applicable), local sales taxes (where applicable).
Prices and specifications are subject to change without special notice.
|
|
|
