TH-
5 &TH-8
|
|
|
Thermalert
Clinical Monitoring Thermometers
|
physitemp
|
|
|
|
| |
|
|
|

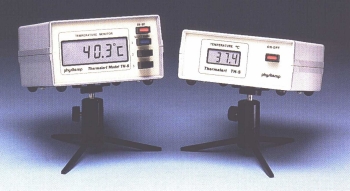

TH-8 and
TH-5
with stands (sold separetely)
|
Ideal
for laboratory hospital use
Safe
battery operation
High
stability
Precise,
yet economical
C
or °F reading on TH-8
thermometer
The
TH-5 and TH-8 are the most economical thermometers in
Physitemp's product line. Both of these thermometers
offer the same high accuracy (0.1°C
±1 digit)
and resolution as all our other thermometers, but
with a narrow temperature range.
|
|
The TH-5 and TH-8 are both ideally suited for either
a laboratory or hospital setting where continuous
temperature readings within the physiological range
are sufficient.
Automatic test of display, automatic 2-stage warning.
Indicator flashes when 8 hours of batteries life
remain; becomes continuous when batteries must
replaced.
The
TH-5 has a temperature range of 25- 45°C with a
single probe input. The TH-8 has a broader temperature
range of - 10 to +60°C with 3 probe inputs. The TH-8
is also switchable from celsius to fahrenheit. For lab
applications where recording is
needed, the TH-5 and TH-8 can be supplied with
analog output. Both instruments are easy to use - just
connect the sensors and switch on. For safety,
both the TH-5 and TH-8 are battery operated. Battery
life is approximately 1200 continuous hours. The TH-5
& 8 thermometers accept all
Type T thermocouple probes.
|
|
Specifications
|
|
|
|
TH-5 |
TH-8 |
|
Temperature
Range
|
25°
to 45°C |
-10°
to 60°C |
|
Probe
inputs |
Single
input |
3
inputs |
|
Resolution |
0.1°C |
|
Accuracy |
0.1°C
±1 digit |
|
Calibration |
Conforms
to NIST tables - (monograph 175) |
|
Readout |
0.5”
high LCD |
0.7”
high LCD |
|
Analog
Output |
Optional,
- approx. 10mV per degree C |
|
Power
Supply |
4
“C” cells |
|
Battery
Life |
1200
hours continuous |
2000
hours continuous |
|
Dimensions |
6”W
x 2.5”H x 6,25” D
|
6”W
x 3.25”H x 6,25” D
|
|
Weight
|
2,5lbs |
2,75lbs |
|
|
