BAT- 12

Thermometer for Laboratory or field

physitemp

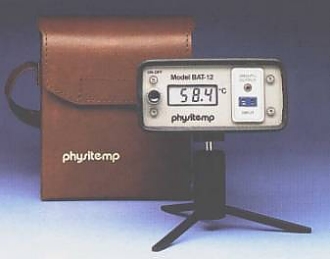

Bat-12 with carring case and stand (sold separetely)


    Accuracy & resolution  0.1°C
    Durable, sealed construction
    Heavy duty carrying case for  field use
    Analog output

The BAT-12 laboratory digital thermometer is Physitemp's most popular and best selling instrument due to its versatility, quality construction and low cost.

The BAT-12 has 0.1°C resolution and super accuracy of 0.1°C ±1 digit between 0-50°C, 0.1°C ±1 digit over full range. The temperature range is -100 to +200°C. The BAT- 12 provides fast readings, usually within 2-5 seconds depending on the temperature probe in use.


The standard BAT-12 is battery operated,  providing over one hundred hours of continuous use. A rechar­geable model BAT-12R which runs on AC in the lab or on ni-cad batteries in the field is also available. All BAT- 12 thermometers are provided  with analog output for recording temperature data. The BAT- 12 Thermometer accepts all Type T thermocouple probes.

The BAT- 12 is designed with a sealed  case making it moisture, dust and fume proof so the BAT- 12 can be used not only in the lab and field but also in industrial environments as well. The BAT- 12 is supplied with a heavy duty camera style carrying case (shown above) for portable field use or can be used in the lab with the optional tabletop stand (TT S -2 shown above).

Specifications

Temperature Range

-100°C to +200°C

Resolution

0.1°C

Accuracy

0.1°C ±1 digit between 0-50°C  0.1% ± digit over full range

Calibration

Conforms to NIST tables - (monograph 175)

Temperature Compensation

±0.1°C from 0° to 50°C

Readout

3 ½ digits',  ½” liquid crystal numerals

Analog Output

10mV per degree C, Approx.

Power Supply

Model BAT-12  -   9V transistor battery
Model BAT-12R  AC 115Vand Ni-Cad battery with changer

Dimensions

5”W x 2.5”H x 6” D

Weight

2lbs, including carrying case
