SM-25A Stereotaxic Micromanipulator
               (Thin-type, Coarse/Fine Drive)

Thin micromanipulator which can place several microelectrodes close together.
This micromanipulator is for multi-channel recording with stereotaxic instruments, and is designed to be as thin as possible without compromising its stability. A fixing holder is employed to fix the microelectrodes, in the same way as thin plates hold the microelectrodes. Rotation mechanisms are equipped for all three planes, and the horizontal plane can be rotated with the operating handle. This makes it possible to set the microelectrode angles and easily position the microelectrodes close together. There are three types (A, B and C) in this series, differentiated by the arrangement of their Z-axis movement unit. The A-type includes a fine movement unit for precise adjustments.

SM-25B Stereotaxic Manipulator
               (Thin-type, Coarse Drive)

Thin micromanipulator which can place several microelectrodes close together.
This micromanipulator is for multi-channel recording with stereotaxic instruments, and is designed to be as thin as possible without compromising its stability. A fixing holder is employed to fix the microelectrodes, in the same way as thin plates hold the microelectrodes. Rotation mechanisms are equipped for all three planes, and the horizontal plane can be rotated with the operating handle. This makes it possible to set the microelectrode angles and easily position the microelectrodes close together. There are three types (A, B and C) in this series, differentiated by the arrangement of their Z-axis movement unit. The B-type provides a simple coarse movement unit.

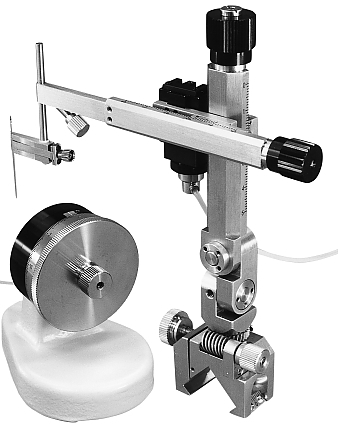

SM-25C Stereotaxic Micromanipulator
             (Thin-type, Single Axis, Oil Hydraulic System)

This micromanipulator is for multi-channel recording with stereotaxic instruments, and is designed to be as thin as possible without compromising its stability. A fixing holder is employed to fix the microelectrodes, in the same way as thin plates hold the microelectrodes. Rotation mechanisms are equipped for all three planes, and the horizontal plane can be rotated with the operating handle. This makes it possible to set the microelectrode angles and easily position the microelectrodes close together. There are three types (A, B and C) in this series, differentiated by the arrangement of their Z-axis movement unit. The C-type features an oil hydraulic, remote controlled movement for stable, accurate operation.
