The Model MO-97 is mounted on the skull of a medium-sized animal such as monkeys to perform chronic experiments. Its 30mm fine movement range permits deeper brain insertion of a microelectrode. The MO-97 allows a separately available guide tube to be fitted for precise positioning and insertion of a microelectrode into hard tissue or deep brain cells. Despite these added features, the drive unit has reduced its weight to lighten the burden on the animal.

Its remote-controlled oil hydraulic system permits vibration-free insertion of a microelectrode. With the detachable/attachable drive unit fixed on the skull mount chamber, even if the animal head moves, the microelectrode can be held in position. A transparent acrylic X-Y stage permits visual observation of the microelectrode insertion. By adjusting the positions of the gasket and the electrode holder, various types of microelectrodes can be used with the MO-97. The skull mount chamber can be filled with Ringer's solution to bring the functioning of the brain to a complete halt, which permits recording for prolonged periods of time.

*Used in combination with a pulse motor microdrive, this system permits even more accurate operation. For details, please contact SPT.

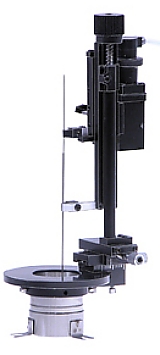

The Model MO-97A is mounted on the skull of a medium-sized animal such as monkeys to perform chronic experiments. Its 30mm fine movement range permits deeper brain insertion of a microelectrode. The MO-97A allows a separately available guide tube to be fitted for precise positioning and insertion of a microelectrode into hard tissue or deep brain cells. Despite these added features, the drive unit has reduced its weight to lighten the burden on the animal.

Its open-type stage permits visual observation of the microelectrode insertion while operating the X- and Y- axis control knobs, and also permits multi-channel operation as well as the use of microelectrodes of various types. The remote-controlled oil hydraulic system permits vibration-free insertion of a microelectrode. With the detachable/attachable drive unit fixed on the skull mount chamber, even if the animal head moves, the microelectrode can be held in position.

*With the drive unit detachable from the chamber, the MO-97A permits the use of chambers of various shapes. Consult us for details.
*Used in combination with a pulse motor microdrive, this system permits even more accurate operation. For details, please contact SPT.
