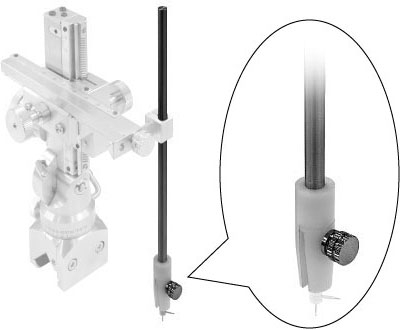

SHC-1 Cannula Holder


Designed for operation with a stereotaxic instrument and micromanipulators, this Cannula Holder ensures speedy, stable and accurate implanting operation of a cannula (about φ3.5mm) into an animal. Mounted on the Narishige Manipulator Model SM-15, this Cannula Holder enables the user to implant a cannula into a target site reliably and accurately.

To fasten a cannula, simply tighten the screw. To implant a cannula, simply loosen the screw to disengage a cannula easily. The end is made of plastic to prevent corrosion.

* Cannulae are not included with the SHC-1. We do not supply cannulae. Please purchase separately.
* Manipulator Model SM-15 is sold separately.

BE-8 Manipulator
Auxiliary manipulator with built-in ball joint.

This single-axis coarse manipulator plays an auxiliary role for stereotaxic instruments. Despite its compact, lightweight design, it has a long 40mm driving range and is mounted on a ball joint so that angles can be set freely. The BE-8 is attached on a O.D.10mm bar and is suitable for installation with many different types of stands.

MA-1 Electrode Position Calibrator
The gauge mark of this instrument coincides with the gauge mark (0 point) of the stereotaxic instrument, enabling accurate attachment of the electrode carrier to the AP frame bar. This instrument also reads the X, Y, and Z axis coordinates of the electrode carrier and converts them to the scale of the stereotaxic instrument.

MA-2 Electrode Carrier Stand
      (SM-15 is sold separately)

This stand accommodates electrode carriers for
stereotaxic instruments.




   Permits easy installation on the new stereotaxic instruments Models SR-5M, SR-5R, SR-6M, and SR-6R.

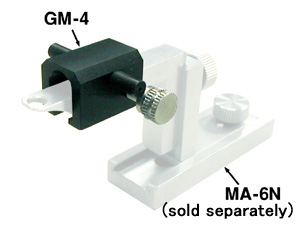

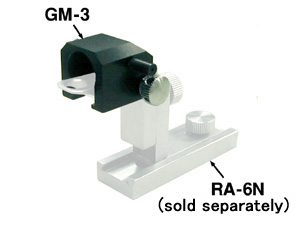

   Intended for use with anesthesia vaporizers. With the tube connected, these anesthesia masks serve the purpose of
     administering anesthetics.
   With the three-point clamping arrangement undisturbed, these anesthesia masks permit the nose clamp and ensure
     secure fixing.
   The compact design does not interfere with experimental procedures.
