TCV-1

Temperature Controller with Thermal Stage

VETEC
discontinued !



Parameter


Controller

Dimension

330 x 300 x 130 mm

Displayed parameter

actual heat-value (quad-stage)
scheduled heat-value (quad-stage)

Governor

continuous Governor

Temperature range

25°C to 50°C

Accuracy

0.1°C

Temperature sensor

mobile sensor, Pt 100, Teflon coated,
Ø 1.5 mm


Thermal stage

for use with 30 mm Petri-dishes

Dimension

142 x 114 x 15mm

Material

black anodized Aluminum, plastic isolated to the microscope stage

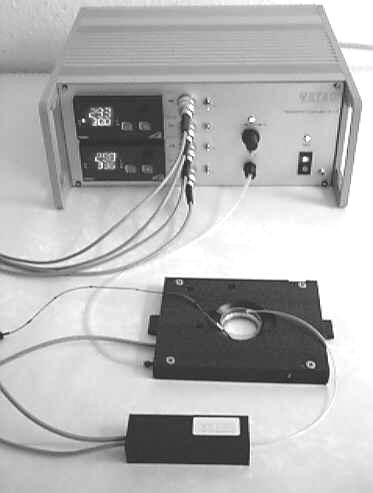

Two-channel-Controller with thermal stage and external tube-heater

Options

1.) Solution inline-heater inside of the thermal stage (one tube)
2.) Pre heated air-flow to the bottom of the Petri-dish
3.) Water cooling inside of the thermal stage
4.) 2-channal-controller (stage and solution inline-heater)
5.) External solution inline-heater (tube-heater)
6.) Thermal stage with holder especially for chambers
