TC-144 / TC-124

Single/Dual Channel Temperature Controller

Warner

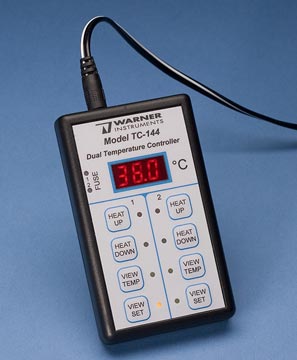

The TC-144 Dual Temperature Controller from Warner  is a simple, low cost device designed for use with our microscope objective warmer or the SWS Series syringe warmers. This device is capable of driving two objective warmers simultaneously. This compact instrument is a basic on-off controller with a slowly ramped switching speed, making it ideal for large mass devices where the temperature changes slowly. The LED display reports the actual or set temperature of either channel. Front panel LEDs display the current information.

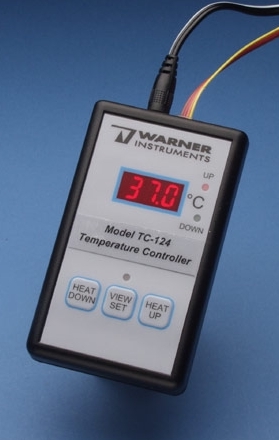

The TC-124 Temperature Controller from Warner Instruments is a simple and low cost device designed for use with our microscope objective warmers.

  • Easy to use

  • Digitally set command temperatures

  • Ambient to 65 °C temperature range

Can be powered from 12 volt battery for sensitive electrophysiology applications

This unit is a basic on-off controller with slowly ramped switching speeds making it ideal for large mass devices where the temperature changes slowly.

The LED display reports the actual temperature of the connected device. Adjustment of the set temperature using either the heat up or heat down buttons causes the display to momentarily report the set temperature.

This compact instrument takes up very little space and may be powered from the 12 VDC wall power supply (included), or a 12 volt battery for low noise applications.

Input Voltage Range 9 to 16 VDC Max. Output Current 1.2 A Max. Output Power







Specifications



TC-124

TC-144

Input Voltage Range

9 to 16 VDC

9 to 16 VDC

Max. Output Current

1.2 A

1.2 A (per channel)

Max. Output Power

13 W

13 W (per channel)

Temperature Ranges

(4) Set by DIP Switch: Ambient to +65°C

(4) Set by DIP switch: ambient to +65C

Meter

3-digit LED display

3-digit LED display, 10 mm high

Meter Resolution

0.1°C

0.1 °C

Panel Indicators

Red: Heat-up Condition
Green: Heat-down Condition
Yellow: Displaying Set-Temperature Features Pushbutton entry of Set-Temperature Set-Temperature displayed for 3 seconds after setting Enclosure

Red: heat-up condition
Green: heat-down condition
Yellow: displaying set-temperature or view temperature Features Pushbutton entry of modes, dustproof, splash-proof case

Dimensions

Case Size 2.1 x 6.6 x 11.1 cm (H x W x D)

Case Size 2.1 x 6.6 x 11.1 cm (H x W x D)

Weight

92 g

0.5 kg

Warranty

One year, parts & labor

One year, parts & labor
