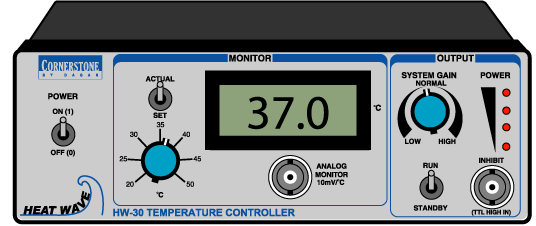

HW-30
single channel temperature controller
|
Features
The Heat Wave (HW-30)
is an ideal microscope heating
temperature controller
Low Noise: Internal DC
Power supply outputs only heavily filtered
DC to Heating Stage
High Power: (30 watts)
Fast temperature steps. Able to maintain
temperature during fast perfusion
Accurate Temperature
Control: 20° to 50° C with stability of ±
0.2°C or better
Exact fit to
microscopes: Adapter plates mate Heating Stage to
almost any microscope
Pre-Heats Perfusion
solutions: Unique Dove Tail Groove in Heating
Stage allows perfusion lines to run
through heating stage before
entering bath chamber
Two Heating Stages:
For use with 35mm culture dishes or with
Dagan Recording Chambers
System
Gain Control: Allows user interface to adjust system
gain
to the application
|
|

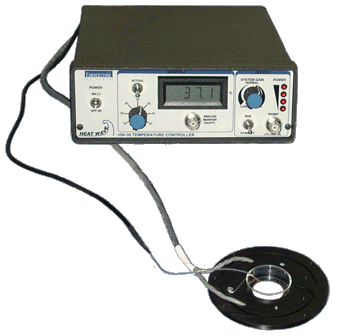

HW-30
with HW-101 Heating Stage
|

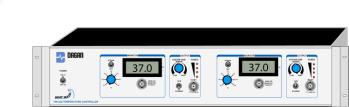

HW-230
dual channel temperature controller
|
|
HW-30
|
HEAT
WAVE 30 Watt Heater Controller
|
|
HW-230 |
Two
channel Heater Controller (30
watts per channel) |
|
HW-B
|
Optional
Battery input jacks (allows HW-30 to be run from 12V Battery)
|
|
HW-101
|
Heating
Stage for use with 35mm Culture Dish
|
|
HW-104
|
Heating
Stage for use with Dagan Recording chambers
|
|
ADPT
|
Adapter
Plate to mount heater stages to microscope (Indicate
microscope model)
|
|
TH-30
|
Spare
Thermister for HW-30
|
|
