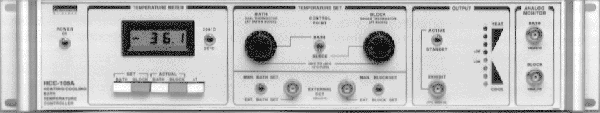

HCC-100A

Temperature Controller

Dagan








 The HCC-100A is a Microscope Stage Temperatur Controller for Study of....

   Oocyte two electrode clamp
   Whole-cell or single channel currents
   Tissue culture/brain slice preparations


                                                     High Power (80 watts), Low Noise, Heating & Cooling


Features
  • Range of -20C to +80C, with stability of +/- 0.1C
  • Two Control Modes: Bath (uses dual thermistors) and Block ( uses single thermistor)
  • Temperature Set Dial for each of the two Modes
  • Heating & Cooling by use of Peltier devices
  • Two Thermistors - one in Block and one in Bath
  • Equipped with graphic power output display
  • Automatically switches from Heating to Cooling upon demand
  • Temperature Set manually or externally (i.e., computer)
  • Over-Temperature Protection Circuit prevents Damage to Thermal Pumps
  • Works with conventional or inverted microscopes
  • Water cooled heat exchanger for high thermal conductivity
  • Does not introduce electrical noise into measurements
  • Standby Mode activated manually or by external TT signal
  • Two analog Temperature Output Monitors for Bath and Block at 100mV/degree C



 Recording Chamber options:
  • tandard 35mm disposable Petri dish
  • Cover Slip/Glass slide
  • Cut-Open Oocyte Clamp Chamber
  • RCP-6T (Linear Flow 6mm x 17mm Perfusion Chamber)
  • RCP-10T (Perfusion Chamber with 10mm round working area)
  • ICP-25T (Perfusion Imaging Chamber)
  • RCB-13T (Bilayer Chamber)


Thermal Stage options:

  • HE-100 Series Thermal Stages
  • HE-200 Series Thermal Stages
