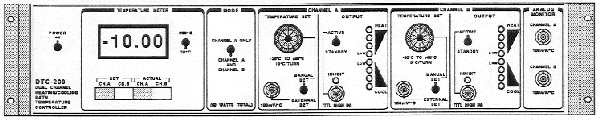

DTC-200

Dual Channel Temperature Controller

Dagan


The DTC-200 is a Microscope Stage Temperature Controller for Study of....

¤  Oocyte two electrode clamp
¤  Whole-cell or single channel currents
¤  Tissue culture/brain slice preparations

Features

¤      -20°C to +80°C with stability of  +/- 0.2°C
¤       Heating & Cooling by use of Peltier devices
¤       Two Independent Channels
¤       Each channel equipped with graphic power output display
¤       Temperature Set manually or externally (i.e., computer)
¤       Automatically switches from Heating to Cooling upon demand
¤       Standby Mode activated manually or by external TTL signal
¤       Each channel equipped with graphic power output display
¤       Does not introduce electrical noise into measurements
¤       Over-Temperature Protection Circuit prevents Damage to Thermal Pumps
¤       Water cooled heat exchanger for high thermal conductivity

Recording Chamber options:

¤      Standard 35 mm disponable Petri dish
¤      Cover Slip/Glass slide
¤      Cut-Open Oocyte Clamp Chamber
¤      RCP-6T (Linear Flow 6mm x 17mm Perfusion Chamber)
¤      RCP-10T (Perfusion Chamber with 10mm round working area)
¤      ICP-25T (Perfusion Imaging Chamber)
¤      RCB-13T (Bilayer Chamber)

 Thermal Stage options:

¤      HE-100 Series Thermal Stages
¤      HE-200 Series Thermal Stages
