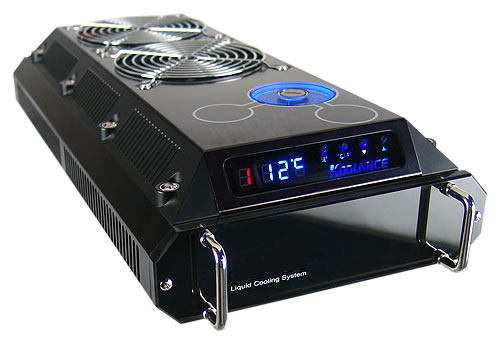

This apparatus circulates water through a fan/radiator
housing and is designed to easily and quietly
remove excess heat from the Peltier portion of
all Warner devices employing this technology.
This heat exchanger can also be used with any
apparatus, allowing the quiet removal of heat
energy via the movement of circulating water. A
great deal of effort has been dedicated towards
making this system both mechanically and
electrically quiet.
The LCS-1 is supplied with 20 feet of
1/8' ID x 1/4' OD Tygon tubing, two bottles of
antifreeze, and a desktop power supply with line
cord.
Specifications
| Pump
rate
|
420
l/hr (111 gal/hr)
|
| Power
Input
|
Universal
Input 100-240 VAC 50/60Hz
|
| Power
Output
|
12
VDC 540 mA
|
| Power
Connector Type
|
9
pin Male 'D'
|
| Physical
Dimensions
|
| Chassis
Size (D x W x H)
|
49.5
x 21.3 x 9.5 cm
|
| Weight
|
3.63
kg
|
| Chassis
material
|
Aluminum
|
| Water
Jacket Ports
|
Male
thread to1/8' Barb Fittings
|
| Warranty
|
One
Year
|
|
