Dagan

        HE-104R with RCP-10T Recording Chamber

Features

    Interchangeable with any Dagan Temperature controller
    Used with both conventional and inverted microscopes
    Provides both Heating and Cooling using Peltier devices
    Heat or cool both Bath and Perfusant simultaneously
    Does not introduce electrical noise into measurements
    Water cooled Heat Exchanger enhances thigh thermal conductivity
    Does not interfere with microscope optics
    Over Temperature Protection prevents damage to Peltier devices

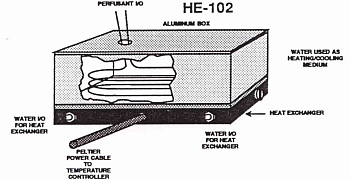

HE-101 used for 35mm Petri Dish or Cover Slip;  HE-102 used for Perfusion Solution Temperature Control;  HE-104 used for Thermally Conductive Chambers

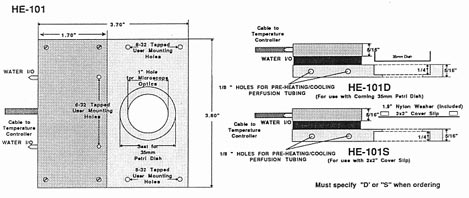

The HE-101 and the HE-104 Stages have two holes running through the base to allow you to run several loops of perfusion tubing to pre cool/heat the perfusant to the desired temperature before it enters the bath. The temperature sensing thermistor can be placed in the bath, or on the block via a small mounting hole in the rear.

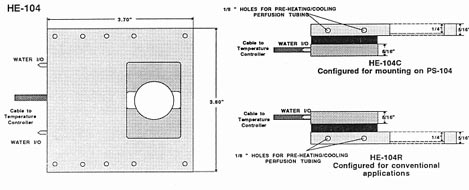

The HE-104 Stages are designed to be used with specially engineered thermally conductive recording chambers. The chambers are available for these application are: RCP-6T for Perfusion recording; RCP-10T for Perfusion recording; RCB-13T for Bilayer recording;CC-1T for Cut-Open Oocyte recording with the Dagan CA-1B Two Electrode Voltage Clamp.
