Perfusion
Pencil™
& Manifolds
|
Automate |
|
|
|
|
Perfusion

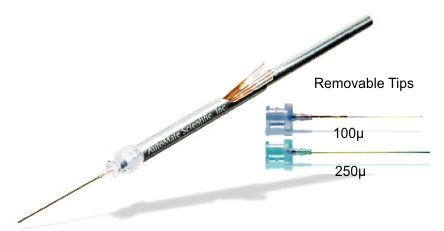

Pencil™ Multi-Barrel Manifold Tip
|
|
|
|
Rapid solution change with micro-liter
dead volume
No piezo or stepper motor translation.No
clumsy rotating valves.
Single-cell and patch delivery
For mounting on a
micromanipulator. Easy to connect and clean.
Vacuum cross-contamination
prevention
Use one tube to vacuum the tip volume clear between solution
changes.
|
|
Perfusion
Pencil
available
with 4,
8 or 16 micro-bore tubes into 1 outflow, with 3
types of removable tips. |
|
|
|
|
|
|
350
µ Removable Tip |
|
Flow
rates (+/- 0.05): |
|
Gravity
1.15 ml/min |
|
2 psi
3.98 ml/min |
|
8
psi
10.66 ml/min |
|
|
250
µ Removable Tip |
|
Flow
rates (+/- 0.05): |
|
Gravity
0.35 ml/min |
|
2 psi
1.66 ml/min |
|
8
psi
5.16 ml/min |
|
|
100
µ Removable Tip |
|
Flow
rates: |
|
Gravity
zero flow |
|
2 psi
0.07 ml/min |
|
8
psi
0.25 ml/min |
|
|
|
|
|
|
|
|
|
4
(8 & 16) in 1 Manifold (Automate Typ)
|
|
4
in 1 Manifold
|
This
manifold are recommended for gravity fed
perfusion systems. Input- and output-tubing have
an Inner Diameter (ID ) from 0.033” and an
Outer Diameter (OD) from 0.062”. Available
as a
4 in 1 Manifold
, an 8 in 1
Manifold
and
16-into-1 Manifold.
Other
types available on request.
|
|
|
|
|
|
|
|
PDF- File Perfusion
Systems Catalog
