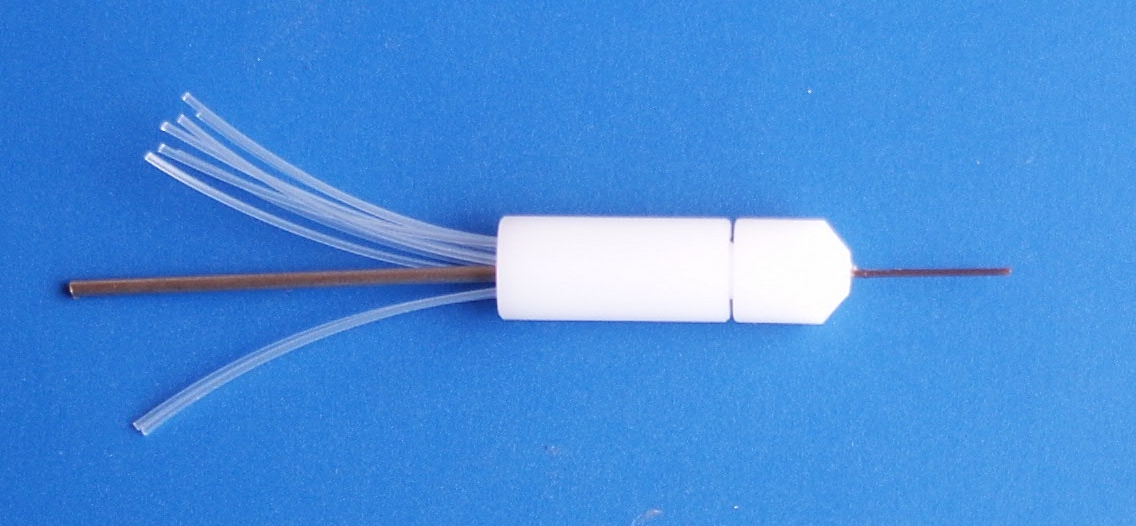

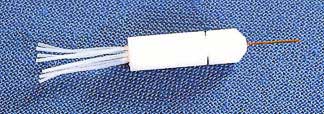

9 in 1 Micropipette with disconnected removable
output Tip
|
The
9 in 1 Micropipette input-tubing is made from PTFE
and has an Inner Diameter (ID ) from 0.4mm and
an Outer Diameter (OD) from 0.68mm. The
output is from Silica tubing. The
9 in 1 Micropipette is available in various
configurations with respect to the removable
output tip
(see below).

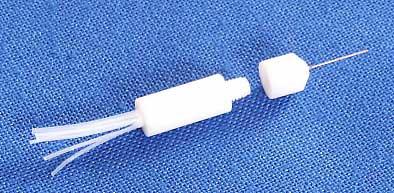

Available removable
Output
Tips
| Type |
Inner
Diameter |
Outer
Diameter |
|
(A)*
|
50 µm
|
360 µm
|
|
(B)*
|
75 µm
|
360 µm
|
|
(C)*
|
100 µm
|
320
µm
|
|
(D)
|
250 µm
|
350
µm
|
|
(E)
|
530 µm
|
680
µm
|
|
* Zero outflow with Gravity |
Ordering information
| Type |
Complete*
Micropipette |
Removable
Output Tips |
|
(A)
|
9to1SPT50
|
9S-SPT50
|
|
(B) |
9to1SPT75 |
9S-SPT75 |
|
(C) |
9to1SPT100 |
9S-SPT100 |
|
(D)
|
9to1SPT250 |
9S-SPT250 |
|
(E)
|
9to1SPT530
|
9S-SPT530
|
|
Special
Holder |
PPH-SPT |
|
*
specify with or without holder-rod |
|
