MSC-200

Perfusion System

BioLogic



The MSC-200 is a simple to use system designed for drug applications to cells or bath chambers. The MSC-200 system consist of an array of 9 electrovalves  [EVH-9], a manual electrovalve controller [MEV-9] and a micro-manifold [10-to-1] (or a "linear head").

Mode of operation

Changing the switch position on the MEV-9 controller sends a logic TTL pulse (0V or +5V, which corresponds to the closed or opened valve state respectively).

Tubing

The EVH-9 electrovalve array can work with tubing of different types, like silicone, tygon or C-Flex as long as the outside diameter should not exceed 2.5mm. Our preference is C-Flex tubing (ID: 0.5mm, OD: 2.1mm, Reference: COLE PARMER #6424-59 or BIOBLOCK SCIENTIFIC #M71195). C-Flex tubing is well adapted to our electrovalves and is much less permeable to air than, for example, silicon tubing. This tubing also gives a best compromise between high flexibility (squeeze factor) and low permeability to air. This tubing is connected by a simple insertion into the output tubing of the manifold.

Linear perfusion head

Like in RSC-200 systems, this head allows all the tubing from the reservoir syringe to the output to be separated. The application of this head is an alternative to a manifold, and therefore gives the opportunity to avoid the major drawbacks, like dead volume, cross-contamination and the necessity of washing (using the linear head, all parts which are in contact with drugs can easily be replaced). The linear head must be fixed on a manipulator and the position changes are done manually.

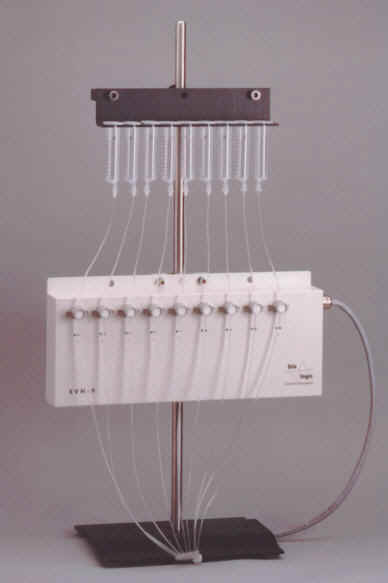

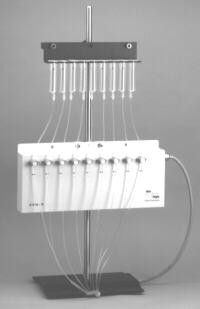

EVH- 9


MEV- 9


Linear perfusion Head
