RC-27L
|
|
|
Large
Bath Camber with
Slice Supports |
Warner
|
|
|
|
|
|
 |
|
|
|
|
This
chamber is designed for slice studies where solution
flow to both the top and bottom of the preparation is
desired. The slice rests on a support 0.5 mm
above the coverslip floor and is fixed in place by a
U-shaped hold down bar commonly termed a
"harp". Both support and harp use a fine
thread to hold the slice in place allowing maximum
access to the preparation. The large size bath and
special platform clamp design allow good access for
immersion optics and electrodes. |
|
Choise of Slice Hold-Down
Two
hold-down styles are avaible: a stainless steel
“harp” and a rectangular plastic frame. While the
weight of the metal harp holds the slice in place, the
plastic frame relies on a close apposition between
itself and the sidewalls of the bath. Hold-downs are
available with thread spacing of 1, 1.5 and 2mm. |
|
|
|
Specifications
|
Material
|
Polycarbonate
|
|

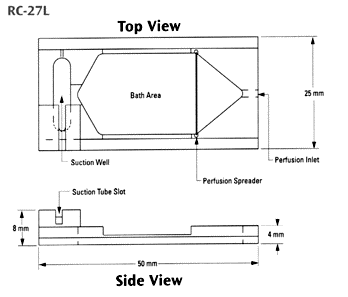

Bath
Dimensions
|
Length
x Width
|
37
x 18mm
|
|
Specimen
Are:
|
23
x 1 8 mm
|
|
Volume/mm
of solution height
|
550
µl
|
|
Standard
Accessories Supplied
|
SS-3
Slice Support
|
Slice
Hold-Down (choice of style & spacing)
|
|
PE-160
Tubing (10')
|
24
x 50 mm #1 Coverslip (pkg. of 50)
|
|
Platforms
Used With
|
P-6D
Plain Platform
|
PH-6D
Heating Platform
|
|
|
Ordering
Information
Specify RC27L with Stailess Steel- or
Plastic - Hold-Down.
Accessories
(spare-or replacements): SS-3 and
Hold-downs with thread spacing of 1mm, 1.5mm and
2mm.
|
|
