RCP-10
RCP-10T
with HE-104R Thermal Stage |
|
The RCP-10 (Polycarbonate) and RCP-10T (Thermally Conductive Plastic) are multi-purpose recording chambers designed for perfusion
flow, and can be used with either disecting or inverted microscopes. In addition,
the control of perfusant and bath temperature is possible using the RCP-10T in conjuction with a Temperature Controller. Contact Dagan for
information on the entire product line of Temperature Controllers. |
|
|

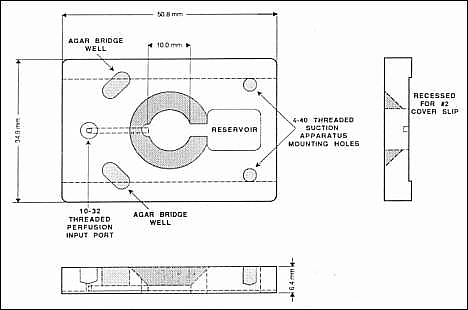

SPECIFICATIONS
|
MATERIALS |
BODY |
RCP-10
Polycarbonate |
|
RCP-10T
Thermally Conductive Plastic |
|
BOTTOM |
No.
2 rectangular cover slip (24 x 50mm) |
|
WORKING
AREA |
10mm
round |
|
PERFUSION
INPUT PORT |
10-32
threaded port. Includes manifolds for 1/16"
i.d. and 1 mm i.d. tubing sizes.
Multiple
port manifolds also available. |
|
SUCTION
OUTPUT |
1;
2.7 x 10.1 mm reservoir with 4-40
threaded mounting holes for suction tube
apparatus |
|
|
 |
ORDERING
INFORMATION
|
RCP-10 |
10mm
Perfusion Recording
Chamber; Polycarbonate |
|
RCP-10T |
10mm
Perfusion Recording Chamber; Thermally
Conductive Plastic. For use with Thermal Stage
HE-104*. |
|
MS-104 |
Mounting
stage for non-temperature controlled
applications. 3.6 x 4.8" acrylic plate
with six 8-32 threaded mounting holes and a
recessed area for recording chamber (RCP-10). |
*See
Temperature Controllers and Thermal Stage
data sheets. |
|
