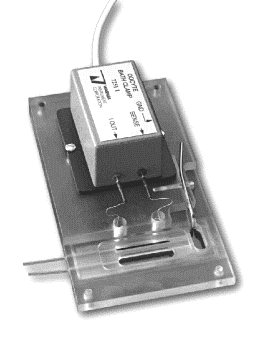

RC-3Z chamber shown with the Warner 7251  bath clamp headstage.

Model RC-3Z is a simple low-cost chamber for studies of oocytes and other large cell structures. It features two slot-shaped bath wells - a narrow well for applications requiring rapid perfusion exchange and a wider well which permits good electrode access. Solution height is adjustable by raising or lowering the suction tube. Two isolated wells are provided for making agar bridge connections from the headstage to the bath.
The perfusion inputs accept standard 1/16" DD (PE-160) polyethylene tubing. The suction tube connects to 1/76" ID tubing.
Threaded holes are included for the attachment of a Warner oocyte clamp bath headstage.

Ordering Information
RC-3Z                       Oocyte Chamber

Optional Accessories
PE-160/10                 Polyethylene Tubing 1/16" OD x 10'
MP Series                Manifolds (from 2 to 8 inputs)
