Series 20 Stage Adapters





Warner

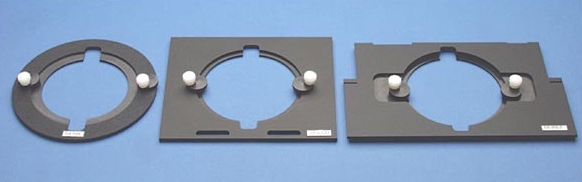

Stage Adapters are designed to allow the mounting of Warner imaging and recording products onto a microscope. We have a wide variety of stage adapters to fit most commonly used microscope stages including stock stages from Nikon, Olympus, Zeiss, and Leica. We also have stage adapters compatible with 3rd party stages from Burleigh, Prior & Ludl, and Marzhauser to name a few. Adapters are machined from high quality Delrin which provides good thermal isolation from the microscope stage. All platforms  rest upon a 38 mm lip which surrounds the central aperture. Platforms and bases are secured using two plastic button clamps.

Note to Zeiss Axiovert users: Series 20 Platforms fit directly into the Zeiss slide frame (Zeiss p/n 471719) which mounts on the Zeiss 211 x 230 Specimen Stage. However, if a heater platform is used, the metal slide frame is not recommended since it will act as a thermal heat sink. Use stage adapter SA-20LZ for this heating application.



Selecting a Stage Adapter

Consult the table below to identify stage adapters compatible with your microscope stage. Generally speaking, the table lists dimensions that should match the cutout in your microscope stage.

Stage Adapter Lookup Table



Stage Manufacturer

Adapter Dimensions

Series 20 Stage Adapters

Order Number

Series 30 Stage Adapters

Order Number

Nikon

10.8 cm diameter

SA-NIK

64-0291

SA-30NIK

64-0322

9 x 13 cm

SA-TS100

64-0340

call

-

12.7 x 11 cm

SA-20UU

64-0298

SA-30UU

64-0380

23.75 x 15.65 cm

SA-20Ti

64-1744

SA-30Ti

64-1747

Olympus

10.3 x 8.89 cm

SA-OLY

64-0294

call

-

12.7 x 11 cm

SA-20UU

64-0298

call

-

11.0 cm diameter

SA-OLY/2

64-0295

SA-30/OLY2

64-0325

Leica

16.5 x 10 cm

SA-20LZ

64-0296

SA-30GALVZi

64-1456

14.99 x 14.99 cm

SA-20L3P

64-0301

SA-30L3P

64-0328

9.66 cm diameter

SA-20GALVO Z

64-0376

SA-30GALVOZ

64-0377

Zeiss

10.97 x 15.98 cm

SA-20KZ

64-0297

SA-30KZ

64-0327

16.5 x 10 cm

SA-20LZ

64-0296

SA-30LZ

64-0326

12.7 x 13 cm

SA-20UUZ

64-0336

SA-30UUZ

64-0379

14.99 x 14.99 cm

SA-20L3P

64-0301

call

-

Prior & Ludl

16 x 11 cm

SA-20PL

64-0299

SA-30PL

64-1748

16 x 11 cm

SA-20PLI

64-0300

SA-30PLI

64-0329

17.78 x 11.76 cm

SA-20PP

64-1746

SA-30PP

64-1745

Burleigh Gibraltar

11.0 cm diameter
(steel top stage)

SA-OLY/2

64-0295

call

-

10.96 cm diameter

SA-OLY/3

64-0386

call

-

Marzhauser

10.97 x 15.98 cm

SA-20KZ

64-0297

call

-

Scientifica

11.0 cm diameter

SA-OLY/2

64-0295

SA-30/OLY2

64-0325



Outer dimensions of the adapters are the same on both Series 20 and Series 30 models,it is the inner diameter of the Series 30 adapters which is larger.

Series 20 fits 79.3mm OD platforms, Series 30 fits 82.0mm OD platforms
