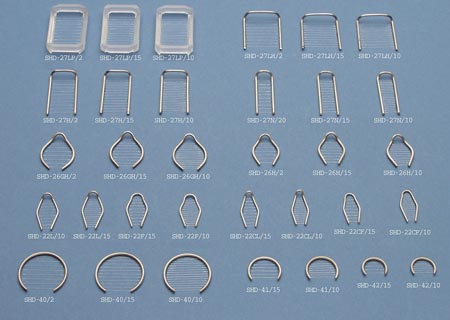

Slice Anchors





Warner

The Slice Anchor Kits are available for the Series 20 and Series 40 families of tissue slice recording chambers.

  • Slice anchors are constructed for an easy push into the chamber's bath area

  • The user can thus control the cord line pressure applied to the tissue slice

  • Most anchors consist of type 316 stainless steel with LycraŽ threads, finished with a plastic coating

  • Plastic anchors are also available for the RC-27L chambers


  Order No. Model No. Description Dimensions

64-0246

SHD-22L/15

For RC-22 Chamber, 1.0 mm

8x18 mm

64-0248

SHD-22L/10

For RC-22 Chamber, 1.0 mm

8x18 mm

64-0247

SHD-22CL/15

For RC-22C Chamber, 1.5 mm

10x18 mm

64-0249

SHD-22CL/10

For RC-22C Chamber, 1.0 mm

10x18 mm

64-0250

SHD-26H/10

For RC-26 Chamber, 1.0 mm

12x17 mm

64-0251

SHD-26H/15

For RC-26 Chamber, 1.5 mm

12x17 mm

64-0252

SHD-26H/2

For RC-26 Chamber, 2.0 mm

12x17 mm

64-0253

SHD-26GH/10

For RC-26G Chamber, 1.0 mm

15x19 mm

64-0254

SHD-26GH/15

For RC-26G Chamber, 1.5 mm

15x19 mm

64-0255

SHD-26GH/2

For RC-26G Chamber, 2.0 mm

15x19 mm

64-0256

SHD-27LH/10

For RC-27L & RC-29, 1.0 mm

18.2x20 mm

64-0257

SHD-27LH/15

For RC-27L & RC-29, 1.5 mm

18.2x20 mm

64-0258

SHD-27LH/2

For RC-27L & RC-29, 2.0 mm

18.2x20 mm

64-0194

SHD-27H/10

For RC-27 Chamber, 1.0 mm

13x23 mm

64-0193

SHD-27H/15

For RC-27 Chamber, 1.5 mm

13x23 mm

64-0192

SHD-27H/2

For RC-27 Chamber, 2.0 mm

13x23 mm

64-0197

SHD-27N/10

For RC-27N Chamber, 1.0 mm

8.5x24 mm

64-0196

SHD-27N/15

For RC-27N Chamber, 1.5 mm

8.5x24 mm

64-0195

SHD-27N/20

For RC-27N Chamber, 2.0 mm

8.5x24 mm

64-1411

3SHD-22F/15

Flat for RC-22 Chamber, 1.5 mm

8x18 mm

64-1412

SHD-22F/10

Flat for RC-22 Chamber, 1.0 mm

8x18 mm

64-1413

SHD-22CF/15

Flat for RC-22C Chamber, 1.5 mm

10x18 mm

64-1414

SHD-22CF/10

Flat for RC-22C Chamber, 1.0 mm

10x18 mm

64-1415

SHD-40/2

Flat for RC-40 Chamber, 2.0 mm

19.7 mm

64-1416

SHD-40/15

Flat for RC-40 Chamber, 1.5 mm

19.7 mm

64-1417

SHD-40/10

Flat for RC-40 Chamber, 1.0 mm

19.7 mm

64-1418

SHD-41/15

Flat for RC-41 Chamber, 1.5 mm

13.3 mm

64-1419

SHD-41/10

Flat for RC-41 Chamber, 1.0 mm

13.3 mm

64-1420

SHD-42/15

Flat for RC-42 Chamber, 1.5 mm

10.5 mm

64-1421

SHD-42/10

Flat for RC-42 Chamber, 1.0 mm

10.5 mm

64-0259

SHD-27LP/10

Plastic for RC-27L & RC-29, 1.0 mm

18x28 mm

64-0260

SHD-27LP/15

Plastic for RC-27L & RC-29, 1.5 mm

18x28 mm

64-0261

SHD-27LP/2

Plastic for RC-27L & RC-29, 2.0 mm

18x28 mm




Kits for the RC-22 and RC-22C chambers (i.e. smaller slice chambers) contain two stainless steel anchors with LycraŽ threads at 1.0 mm and 1.5 mm spacing. The stainless steel material allows for the anchors to be adjusted for a closer or fit in chamber.

All kits come with nylon mesh in two sizes (112 micron and 160 micron) that may be cut and used in conjunction with the slice anchor.

Kits for the RC-26, RC-26G, RC-27, and RC-27L chambers (i.e. large bath chambers) contain three anchors with 0.1 mm thick LycraŽ threads at 1 mm, 1.5 mm, and 2.0 mm spacing. Kits are available for both plastic and stainless steal anchors.
