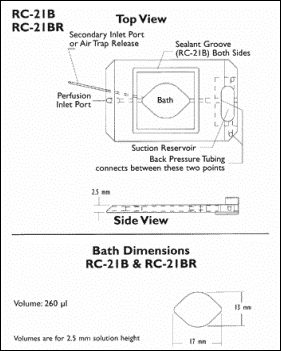

These chambers provide a large viewing area and good access for microscope optics at chamber top and bottom. The chambers are identical except for the coverslips used; 22 mm square for RC-21B and 25 mm round for RC-21BR. Distance between top and bottom coverslip is 2.5 mm. Bath volume is 260 µl. An additional port at the bath input may be used to inject substances or to remove bubbles. At the bath output, a length of tubing is use as a back pressure control to insure a smooth perfusion flow.

Order with P-2 or PH-2 platform.
