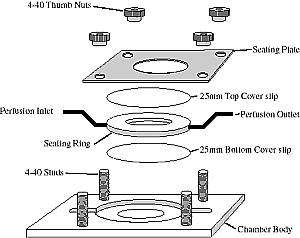

The ICP-25T is an environmentally sealed perfusion-imaging chamber. The chamber is sealed between two 25mm cover slips. The silicon rubber sealing ring provides the walls of the chamber as well as the seal to the coverslips.

Temperature Controllable

The ICP-25T is ideal for temperature controlled applications. The bottom (Chamber Body) and the top (Sealing Plate) are both made of thermally conductive anodized aluminum. The Chamber foot print fits exactly into Dagan's temperature controlled thermal stages (HE-104R or HE-204).

SPECIFICATIONS

CHAMBER BODY (bottom): Anodized Aluminum
SEALING RING: Silicon Rubber; Standard 2mm and 3mm thickness provided
COVER SLIPS: 25mm round (two # 1 supplied)
SEALING PLATE (top): Anodized Aluminum
INPUT PORT: 18 gage stainless steel port
PERFUSION OUTPUT PORT: 18 gage stainless steel port.
CHAMBER OUTSIDE DIMENTSIONS: 50.8mm x 34.9mm
WOKING DISTANCE: Typically 2 to 3 mm (Distance between top and bottom cover slips). This distance is determined by the thickness of the sealing ring. Several sealing rings are supplied in the range of 2 to 3mm. Sealing rings as thin as 1mm are available upon special request.
