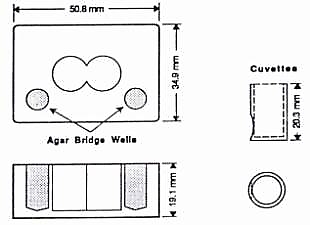

The RCB-13 (PVC) and RCB-13T (thermally conductive plastic) are general purpose chambers for the study of lipid bilayers in both ambient and temperature controlled conditions.

Temperature control is possible by using the RCB-13T in conjunction with a Temperature Controller.

The cuvettes are machined from Delrin for both chamber configurations and are standard with a 0.01" diameter aperture. Other aperture sizes are available.

RC B-13            PVC Chamber with Delrin cuvette
RCB-13T           Thermally conductive Chamber with Delrin cuvette Mates with Thermal Stage HE-104R
DC-13                Spare Delrin Cuvette
