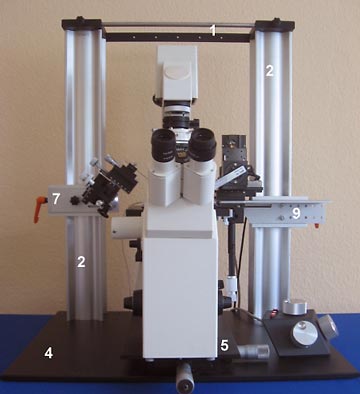

Tower system with
xy-translation table, carriers and manipulators
|

Baseplate with with xy-translation table, short
pillars, chamber holder and carrier with
DC-3K manipulator
|
|

* also available with other dimensions
|
1 -

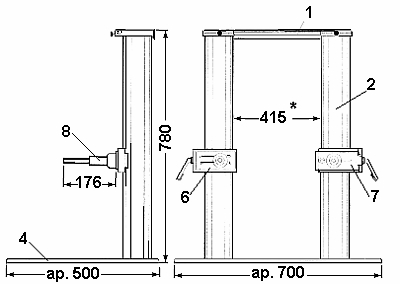

Top assembly (KE)
2 -

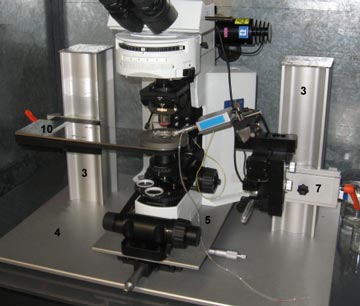

Pillar, long (SL)
3
- Pillar, short (SL-s)
4 - Base plate (GP), also available with
monted xy-Translation Table (see above)
5
-
xy-translation table (VT)
6 - Carrier with holder ½”
for Manipulators (RG)
7 - Carrier (90° to fold)
with holder ½” for Manipulators (RK)
8 -
Rod holder ½”
9 -
Carrier with
angle
bracket to hold manipulators (RW)
10 -
Carrier with
holder for chambers (RCH)
|
|

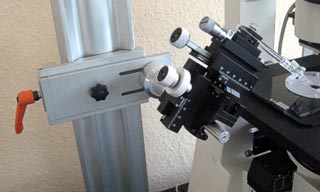

Carrier (90° to fold) with holder
and MM-33 manipulator

Carrier with holder and MM33
Manipulator
Carrier on a short pillar with
angle
bracket and MP-285 manipulator
|

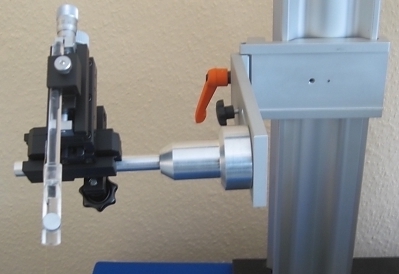

Carrier with
rod holder and MM-33
manipulator 90° folded

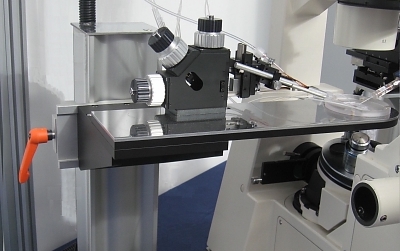

Carrier
with chamber holder and NMN-25 manipulator

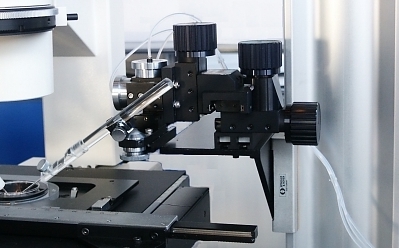

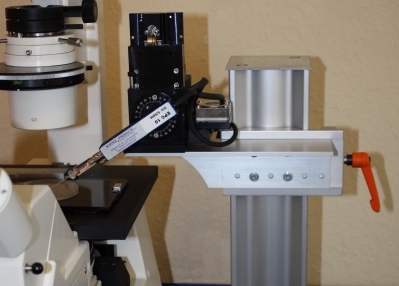

Carrier with
angle
bracket and MHW-3 manipulator
|
