MT-70
|

|
|
Micromanipulator Stands
|
SUTTER INSTRUMENT
|
|
|
|
|
The
MT-70 series of stands are sturdy, stable, and extremely versatile
for mounting components for a variety of research applications. They
were designed for placing our heavy Huxley style micromanipulators
adjacent to any microscope. We found them to be so useful and
adaptable that we also use them for mounting other items such as
optical components.
The
MT-70 series of stands are sturdy, stable, and extremely versatile
for mounting components for a variety of research applications. They
were designed for placing our heavy Huxley style micromanipulators
adjacent to any microscope. We found them to be so useful and
adaptable that we also use them for mounting other items such as
optical components.

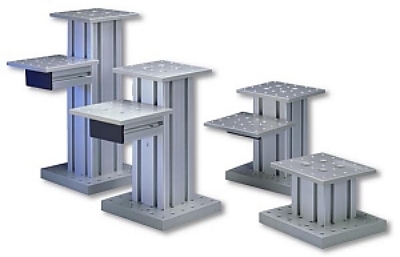

The
stands are based on a rigid extruded aluminum tower which is
available in 3 inch increments up to 12 inches. The tower is mounted
on a sturdy 3/4in thick aluminum baseplate and then fitted with a
5/16in thick aluminum mounting platform. These systems are
configurable as fixed height stands or, in the MT-71
series,
you can add an adjustable height cantilevered side platform for
added versatility. The tower can be center or edge mounted to the
baseplate for accommodating various spatial layouts. Rows of 1 inch
centered clearance holes are provided in the baseplate for
attachment to tables. The mounting platforms have tapped 1/4-20
mounting holes on 1 inch centers. |
 |
|
The stands are available in sets
or you can order individual components separately
to meet your specific requirements. Custom heights can be made to
order for an additional fee. To securely fasten our MP-85 Huxley
style manipulator to the mounting plates, please order the
manipulator adapter plate at the time of purchase. Larger baseplates
or mounting plates are available upon special order.
|
|
|
|
|
SPECIFICATIONS
|
Dimensions |
Baseplate |
153mm x
153mm x 19mm |
|
Mounting Plate |
128mm x
128mm x 8mm |
|
Total
Stand Height |
104mm
to 333mm
|
|
Weight
|
1.7kg
to 3.8kg |
|
ACCESSORIES
MT-7001
Cantilever mounting assembly
T363400
Magnetic feet (set of 4)
X700100
Baseplate - 6in x 6in x 3/4in thick
X700102 Mounting plate -
5in x 5in x 5/16in thick
X700115
MP-85 Adapter plate
|
|
|
|
|
MT-70 Series
MT-70-3
3in tower, baseplate, mounting platform and fastening
hardware
MT-70-6
Same as above with 6in tower
MT-70-9
Same as above with 9in tower
MT-70-12
Same as above with 12in tower
(Custom tower lengths available)
|
MT-71 Series
MT-71-3
3in tower, baseplate, cantilever assembly with mounting platform,
tower endcap and fastening hardware
MT-71-6
Same as above with 6in tower
MT-71-9
Same as above with 9in tower
MT-71-12
Same as above with 12in tower
(Custom tower lengths available)
|
|
|
|
|
Towers
& Manipulator Stands
