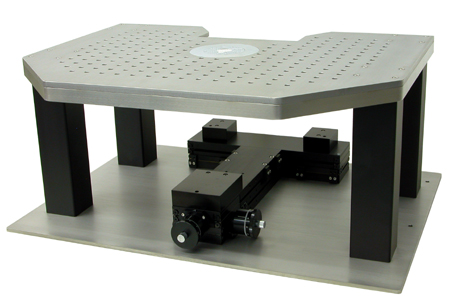

This
system employs a stable isolation table on which the
specimen and the micromanipulators can both be fixed
independently to the microscope. With the microscope
firmly fixed in position, the base can move in both X
and Y planes. This allows the operator to change the
observation position without moving either the
specimen or the micromanipulators. The table is
designed to accommodate any brand of microscope, so no
adjustment mechanism is necessary. Vertical adjustment
is easily performed by using spacers. The stage is
supported by four large pillars whose outstanding
rigidity and anti-vibration characteristics are
further reinforced by added crossbeams. Holes provided
in the wide, thick stainless steel stage allow the
operator to set up several micromanipulators in any
position required, by means of magnets or screws. The
X, Y stage incorporates several large bearings to
ensure smooth, stable movement of even a heavy
microscope. Even the heaviest microscopes can be moved
smoothly and easily with the large handles, which are
comfortable to operate using just one hand.
|


|
|
|
Compatible
microscopes |
ITS-N |
Nikon
Upright Microscope for Patch Clamping/
Physio Station E600FN |
|
ITS-O |
Olympus
fixed stage upright microscope / BX50WI |
|
ITS-O2 |
Olympus
fixed stage upright microscope / B
X51WI |
|
ITS-Z |
Carl
Zeiss fixed stage upright microscope / Axioskop
FS |
|
ITS-Z2 |
Carl
Zeiss fixed stage upright microscope / Axioskop
2FS |
|
ITS-L |
Leica
fixed stage upright microscope / DMLFS |
|
Accessory |
Allen
Wrench |
|
Movement
range |
Fine |
X22mm,
Y22mm, Full rotation of knob: 500µm,
Minimum graduation: 2µm |
|
Dimensions,
Weight |
W650
x D460 x H290mm, 41.7kg |
|
