Dimensions

Working plate (granite with 3mm stainless steel top):  600(W) x  500 (D) x 53 (H) mm*
Table height:    130 ± 2 mm
Weight:             ca. 30 kg

* Other dimensions available

ISO Tab-L tabletop platform, surface polished granite

                    ISO Tab-L tabletop platform, surface stainless steel

ISO Tab-L tabletop platforms are ideal for desktops in laboratories and Q.C. rooms, where they effectively isolate structural and floor vibration. Isolation is provided in the vertical and horizontal axes by pneumatic isolators located beneath the work surface. A protective shroud is supplied with all models which is isolated from the working surface and protects the system from accidental jarring.

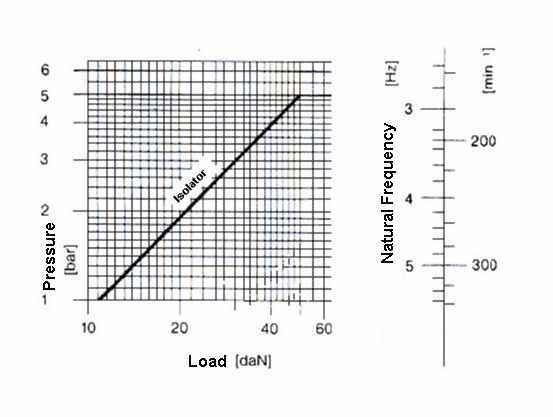

The compact design of the ISO Tab-L enables a working height of 75 to 95 mm and will support and isolate precision instruments weighing between 22 kg and 405 kg. Each model ISO Tab-L requires an air supply of no more than 4 bar, and access to inflate/deflate the isolators is provided by convenient ports located on the side of each system.

Leveling of the table surface is performed via the regulator control units with air supplied from a manual pump or a dedicated source. The pressure at each isolator can be adjusted manually to accommodate changes in load distribution.
Work surfaces available include polished granite, polished stainless steel and black anodized aluminum.

The ISO Tab-L's are available in four sizes:
300 x 450 x 95 mm; 450 x 450 x 95mm; 450 x 600 x 95 mm; 600 x 900 x 95mm.
