MP-225 |
|
|
Motorized Micromanipulator
|
SUTTER INSTRUMENT
|
|
|
|
|

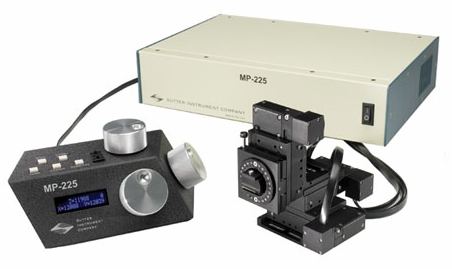

MP-225 motorized micromanipulator with
controller and ROE
|
The
MP-225 is designed primarily for positioning
patch and intracellular recording pipettes. We have
retained and refined the features most desired for
this type of work. An extended version of the popular
rotary optical encoder (ROE) is the sole input device
available with the MP-225. Like the MP-285, the
manipulator has a synthetic 4th axis for diagonal
advancement of the pipette; 16 different angles are
selectable via DIP switches. Speed and resolution of
movement are easily selected with a multiple position
thumbwheel, allowing fast/coarse movement and slow/ultra-fine
movement in 10 increments. Two commonly used robotic
movements have been incorporated for user convenience.
A single button press can initiate a move to a Home
position for pipette exchange or to a user defined
Work position for quick location of the pipette near
the recording location.
A
display on the ROE gives position location. As all
controls are located on the ROE, the controller can be
moved to a less accessible area of your setup and does
not need to occupy prime space in an equipment rack.
As always, our technical support team is available to
address your particular needs and answer all questions
before and after your purchase.
|
|
FEATURES
Highly stable for experiments intolerant of pipette
drift
Submicron (62.5nm) minimal resolution for fine
movement
Convenient thumbwheel selects
resolution/speed of movement
25mm of motorized travel on all three
axes
4th axis for coaxial movement of
pipette, angle selected by DIP
switches on ROE
ROE button press actuates move to Home position for pipette
exchange
ROE button press actuates move to Work position near recording
location
Continuous display (in
microns) of axes positions located on ROE
DIP switches on ROE select direction of movement produced by
turn of ROE knob
Modularized, compact design easily adaptable to your
setup
Mounting
adapters included with manipulator
|
|
Travel |
25
mm on all three axes |
|
Resolution |
Six microstep sizes selectable (µm/µstep): 0.0625, 0.125, 0.25, 0.5, 1.0 and 2.0
Finer movement
settings use the 62.5nm
microstep size but fewer microsteps are commanded per encoder knob turn |
|
Maximum Speed |
2.0mm/sec |
|
Long
Term Stability |
1-2 µm/hour maximum |
|
Drive Mechanism |
Integral miniature stepper motor with anti-backlash gearhead |
|
Dimensions |
Mechanical |
10cm x 15cm x 15.5cm |
|
Controller |
10cm x 40.5cm x 31cm |
|
Weight
|
Manipulator |
1.3kg |
|
Controller |
4.5kg |
|
Electrical |
115/230
V;
50/60 Hz power line |
|
|
|
|
|
Each Motorized Micromanipulator MP-225 is delivered complete with:
manipulator, table top controller unit, extended ROE, cables, rod holder, 4” dovetail
extension, mounting adapter plate, hinged
headstage mount, screws, hex wrench, power cord and manual |
Accessories available separately
285204 4in dovetail extension
285RBI Rotating base
2852RA
Right angle adapter
2852ZV Z-axis vertical extension
2852ZH Z-axis horizontal extension
Please call for information on specific microscope mounting
adapters.
|
|
