MMO - 202 ND

Three-axes Hanging Joystick Oil Hydraulic Micromanipulator

  Narishige

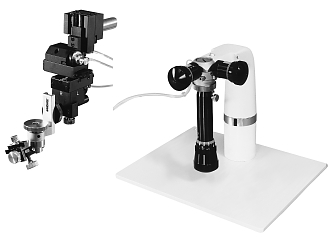

The MMO-202 micromanipulator features an oil hydraulic joystick enabling smooth three-dimensional movement with a single lever. Since the joystick is the hanging type, it can be manipulated with the user's arms and hands placed comfortably on the table. Operation is therefore done in a natural posture, and can be maintained for longer periods. Among the other features promoting its easy use are the movable ratio adjustment section located on top of the control unit and the unit's familiar rounded design instead of the more angular shape seen on conventional equipment. As one of our most popular micromanipulators, the MMO-202ND is highly recommended.

Accessories

IP Iron Plate, UT-2 Universal Joint, CF-3 Tube Fixture, Allen Wrench

Movement range

Fine

10mm, Y10mm, Z10mm
Full rotation of knob: 250µm
Minimum graduation: 2.5µm

Joystick (max. movement in X-Y plane): 2mm

Dimensions/ Weight

Control unit

W165 X D80 X H175 mm/ 1.85kg

Drive unit

W70 X D50 X H80 mm/ 0.15kg
