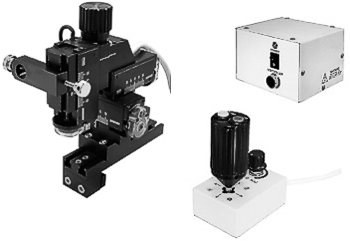

This
motor-driven coarse micromanipulator enables remote
controlled movement of a pipette into a microscope
observation field. The bigger the microscope, the more
difficult manual control becomes; remote control is
the mainstream alternative. Control is easy, with the
joystick right at the operator's hand, and a return
mechanism facilitates pipette exchange.
|
Accessories |
Power
Cord x 1
Allen Wrench (1.5/3mm) 1 each
|
|
Movement range |
X22mm,
Y22mm, Z22mm
|
|
Driving
Speed |
When
the High Speed Button is in use : 1.4mm/s
Speed Adjusting Knob (at Maximum) : 0.7mm/s
Speed Adjusting Knob (at Minimum): 0.1mm/s |
|
Dimensions/Weight
|
Power
supply |
W125
x D105 x H85mm, 1.5kg
|
|
Control
unit |
W70 x
D50 x H80 mm/0.15 kg |
|
Drive unit |
W63
x D102 x H104mm, 0.5kg |
|
Power
source |
AC100V(±5%),
AC120V(±5%), AC220V(±5%), AC240V(±5%) |
|
|
