MHW-4

One- Dimensional Water Hydraulic Micromanipulator

 Narishige



  This model is an add-on type single-axis water hydraulic micromanipulator, attachable to ball joint B-9. Made for use with MHW-3 in patch clamp applications, it offers excellent stability with minimal drifting.

5:1 cartridge type

Fine movement range

  2 mm

Full rotation of knob

 50 µm

Minimum Graduation

 0.2 µm

Accessories

Connector, CF-3 Tube Fixture

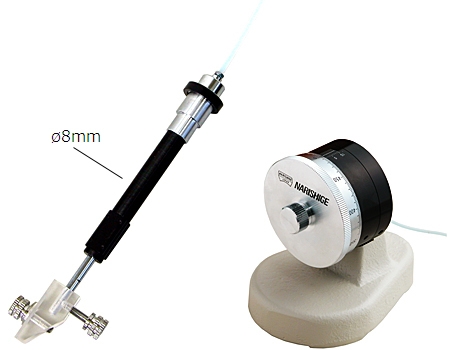

MO-10
One- Dimensional Oil  Hydraulic Micromanipulator

Pencil type manipulator, easily combined with three-dimensional manual manipulator.

This is a pencil type oil hydraulic micromanipulator designed for use with a three-dimensional manipulator. The drum type control unit is employed for space saving as well as for precise operation.

A long holder is also available when the electrode is not long enough to reach the sample, or when the operator wants to make the setting closer to the sample. Please contact your local Narishige representative for the details.

Accessory included

Dedicated Electrode Holder

Length of hydraulic tubing

1.5m

Movement range

Fine

10mm
Full rotation of knob 500µm
Minimum graduation 2µm

Dimensions/Weight

Control unit

W70 × D115 × H100mm, 1.15kg

Drive unit

W30 × D20 × H125mm, 50g
