MD 4

Dual Tool- Holder Micromanipulator

  Marzhauser

Based on the MM33, the MD 4, a small and compact micromanipulator for manual manipulation in all three axes (x, y and z)  is equipped with a mounting bracket for a second tool or electrode holder. These can be positioned in the x and y axes independent of the manipulator and may also be tilted and swivelled by two fine-adjustment screws.  Scales allow readings of coarse adjustment with an accuracy of  0.1 mm.  Additional x-axis fine control is achieved with a micrometer screw with a resolution of 0.01 mm. The MD 4 may also be mounted on an optional tilting base.

X- axis coarse movement

37 mm

X- axis fine movement

10 mm

Additional electrode  X- axis

12 mm

Additional electrode  Y- axis

9 mm

Y- axis  movement

20 mm

Z- axis  movement

20 mm

Weight

700 g
The MD 4 is available for right handed use or for left handed use, with a ½” clamp or mounted on a tilting base.

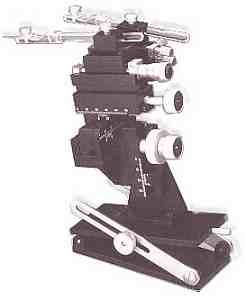

                                     MD 4 mounted on a tilting base
