MP-285

XenoWorks Micromanipulator

SUTTER INSTRUMENT

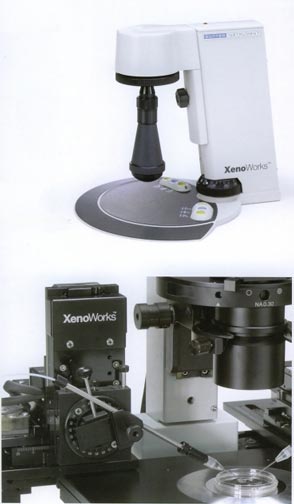

The XenoWorks Micromanipulator has been designed around our hugely-successful MP-285 electrophysiology micromanipulator, with the addition of a smooth-moving adjustable inverted joystick. Because the motor drive is based on an electrophysiology design, the XenoWorks Micromanipulator is extremely stable and resistant to ambient vibration. This stability also makes this manipulator an ideal platform for use in conjunction with the PrimeTech PMM-150FU Piezo Impact Drive, for applications such as mouse nuclear transfer and intracytoplasmic sperm injection. The joystick offers an unprecedented level of user comfort during operation. The use of an inverted joystick in conjunction with an almost zero-profile base allows the operator to rest their hands and forearms on the bench surface, providing ease of use and added ergonomics. The function keys and declutch mechanism can be located and activated by touch, removing the need to look away from the microscope, which will save time.

Another time saving feature is the “Setup” function. Activating the setup function places the micromanipulator in the optimum position prior to beginning work (halfway on the Y-axis, three-quarters down on the Z-axis and threequarters inwards on the X-axis). Once the manipulator is in the default setup position, the micropipette tip will be positioned within the microscope’s optical path, reducing the time required find the pipette tip through the microscope. The setup function also ensures an adequate travel range in all axes of motion prior to starting work. The manipulator uses a pre-programmed “Home” position for fast micropipette exchange, and the ability to determine a “Work” position so the pipette can be repositioned with the press of a button. A Y-axis lockout function allows X-only axial movement for maximum control during injections, and a Z-limit memory position is used to prevent the pipette from colliding with the bottom of the dish. The XenoWorks joystick is designed to allow the user to immediately develop an intuitive feel that makes it easy to precisely control position. Movement of the joystick is directly converted to a proportional movement of the manipulator. Speed control, center of travel, and programmable positions are right at your fingertips. One unique feature of the joystick is the declutch mechanism that allows for rapid repositioning of the joystick withut moving the pipette. Combining this advanced joystick with the proven Sutter MP-285 manipulator technology creates an ideal system for intensive microinjection.



Applications

   Pronuclear microinjection of DNA into mouse zygote
   Embryonic stem cell transfer into blastocyst
   Somatic cell nuclear transfer
   Intracytoplasmic Sperm Injection (ICSI)
   Piezo-assisted
sperm-mediated transgenesis and
     nuclear transfer
   Adherent cell microinjection

Features

   Height- and tension-adjustable inverted joystick for optimal ergonomics
   Exceptionally smooth and responsive micropipette movement
   Touch declutch mechanism
   6 speeds from coarse to
ultra-fine
   User definable memory positions, including “Work” and z-axis lower limit
   Y-axis lock-out for pure x-axis travel
   25mm of travel in all three axes




Specifications

Micromanipulator

Travel Maximum Resolution Maximum Speed
25mm on all three axes 62.5nm/microstep 5.5mm/sec

Joystick

  Inverted joystick with integral declutch
  Height and resistance adjustable
  Independent axis-polarity inversion
  6-position rotary range control
  'Set-up' function
  Position memory
  1 user-defined set point ("Work")
  1 user-defined axis limit ("Z-floor)
  2 preset points ("Home’" and ‘"Setup")

Maxmimum Motor Speed / Travel Range
5.5mm/s / 25mm

Dimensions

Motor drive Joystick Control
112mm x 185mm x 145mm 265mm x 240mm x 226mm 407mm x 280mm x 101mm



Electrical   115/230 V,  50/60 Hz
