Micro 1401 - 3

CED

The Micro1401-3 is a low-cost, versatile data acquisition unit. The on-board processor with high-speed memory is optimised for real-time processing, free from the constraints of the host computer operating system. Fast and accurate sampling coupled with simultaneous output offers extensive on-line experiment control.

Spike2 - continuous data acquisition and analysis

Signal - sweep-based data capture and analysis

Fast data acquisition and analysis

The Micro3 records waveform data, digital (event) and marker information and can simultaneously generate waveform and digital outputs in real-time for multi-tasking experimental control. It features high-speed waveform capture at rates up to 500kHz with 16-bit resolution. The 32-bit RISC processor allows complex on-line analysis while freeing time for the host computer to perform other tasks, such as data manipulation and further analysis.

Expandable for advanced applications

The expandable design of the Micro3 enables users to configure their systems to suit specific requirements. For more demanding applications, options include:

  12 or 24 additional channels of BNC terminated waveform input

   64 channels of mass terminated waveform input

   Time lock (synchronization) of multiple Micro1401s and Power1401s

   Event channels (time stamp) expansion

CED application software

The CED Spike2 and Signal applications customize the system for use in a wide range of research areas. Advanced software features such as on-line spike sorting in Spike2 and fast sweep modes in Signal are enhanced when using the Micro3

  Single and multi-unit spike processing
  Tetrode and n-trode recording
  Evoked response, TMS and rTMS
  Gastro-intestinal studies
  Tremor analysis
  ECG, EEG, EMG and EOG
  Patch and Voltage clamp In-vivo and in-vitro studies
  Sports physiology
  LTP, LTD capture and analysis
  Cardiovascular studies

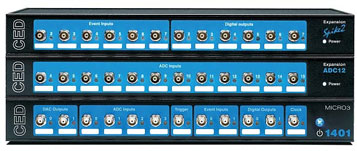

A selection of expansion units allows enhancement of the Micro3 to suit your application
