Specifications Micro 1401 - 3

Waveform I/O

Waveform input: 4 channel on base unit
Total of 16, 28 or 64 waveform inputs via expansion units
 ADC: 16-bit, 500 kHz  maximum aggregate sampling rate
Waveform output: 2 channels
DACs: 16 bit, 5microsecond setting time
Waveform I/Omuser selectable ±5V, or ±10V
 System accuracy and noise: 0.05% of full scale ± 1.5 bits RMS
Digital I/O
Digital inputs and outputs 5V TTL compatible, inputs over-voltage protected
16 digital inputs, 8 with change-of-state detection to microsecond accuracy
16 digital outputs, 8 with clocked outputs for microsecond accurate switching Handshake lines for byte input and output

Clocks and events
 5 programmable clocks with 100nS resolution
BNC socket for clock inputs and event (clock start) connections

Processor and memory
 32-bit ARM7 processor running at 90 MHz
4 MByte of fast read-write memory


Case and power supply
 Size: 366mm wide x 48mm high x 217mm deep
Rack mount for standard 19 inch laboratory racks
12V DC power option for mobile, trolley or remote applications
External 110V-240V,  50-60 Hz auto-sensing power supply
Power consumption: 15 watts (approx)


Synchonisation
 Synchronize (time lock) multiple Micro1401s and Power1401s


Host interface
USB 2.0


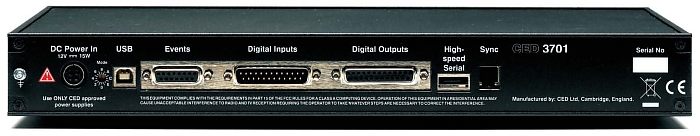

Rear view of the Micro1401-3


Expansion units





For user who require more inputs and outputs than are available on the
standard unit, we offer several expansion options in the form of top-boxes.

ADC 12                 - 12 additional  channels of waveform input; fit two units
                               for 24 additional channels

ADC 64                 - 64 additional  channels of waveform input

Spike 2                 - 6 channels of event input and 6 digital outputs
                               brought to front panel BNCs

Event                    - 12-channel event expansion (expandable to 96 channels)
                               in addition to the 8 dedicated change of state inputs

Compatibility
Software compatible with CED 1401plus, 1401 and Power1401 at application level
Runs CED Spike2, Signal and applications written for the CED 1401 family of interfaces

Drivers for Windows 98, Me, 2000 and XP (32-bit and 64-bit),Vista (32-bit and 64-bit) and Windows 7
Intel Macintosh running Windows
