The

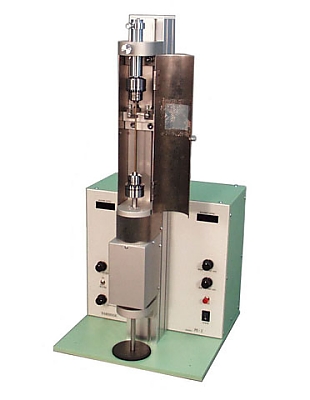

PE-21
is an updated version of the former model PE-2, long
established as the Ecclecs and tower type, featuring
new electrical characteristics for greater safety and
stability. Like the conventional type, it stretches
the glass capillary vertically by using the
gravitational force of its own weight and that of the
magnet. The glass capillary is fixed by the drill
check method, and capillary sizes ranging from Ø1 to
Ø 4mm can be used. From capillaries Ø 2 to Ø 4mm
thick, the PE-21 can produce the long, comparatively
firm electrodes used for nerve center experiments, or
multibarreled electrodes combining three, four and
seven Ø
1 mm glass capillaries. The magnet and heater are
adjusted from the digital display, where the maximum
output of each is represented as 100: this makes
adjustment easy and contributes to greater accuracy in
mass production. By combining two conventionally
separated units into one, this model saves a
considerable amount of space.
Accessories:
Spare
Heater, Chuck Handle, Power supply
cable, PE-21 HC (for 3mm) is integrated
Dimensions: W 300 x D 300 x H 610mm
Weight:
27 kg
|
 |
