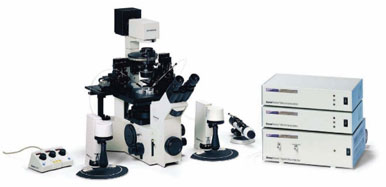

XenoWorks^TM is a modular microinjection system designed to meet a wide variety of application needs.  SUTTER´s experience with precision motor control has culminated in this state-of-the-art system. The XenoWorks^TM Micromanipulator uses a classic inverted joystick design for excellent ergonomics, intuitively linking the user with the micropipette.  Combined with our smooth, responsive stepper-motor drives, the XenoWorks^TM Manipulator provides exceptional mechanical stability, sensitivity, and range of movement.

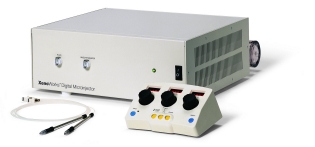

The XenoWorks^TM Digital Microinjector was designed for precision manipulation of cells via an easy-to-use interface. The Digital Microinjector employs a self-contained vacuum channel for gentle suspension-cell holding applications.  A second channel is available for both high-pressure injection and gentle positive/negative pressure for transfer of embryonic stem cells. Both injection duration and pressure are easily selectable using rotary knobs on the remote interface.  The internal low-speed compressor removes the need for an external pressure supply. The XenoWorks^TM family also includes the Analog Microinjector for simple cell holding and transfer applications, which incorporates the same smooth response and ergonomic design of our other XenoWorks^TM products.

XENOWORKS MICROMANIPULATOR

   Height- and tension-adjustable inverted joystick for optimal ergonomics
   Exceptionally smooth and responsive micropipette movement
   Variable movement range - 6 settings from coarse to ultra-fine
   User definable memory positions, including “Work” and z-axis lower limit
   A wide 25mm of travel in all three axes

XENOWORKS DIGITAL MICROINJECTOR

   Independent “hold” and inject/transfer channels
   Up to 5,600 hPa of injection pressure
   Remote keypad with rotary controls and high- visibility
   LED displays
