	TooheySpritzer Pressure Injection Systems	Toohey

TooheySpritzer line of pressure injection systems for intra-cellular and extra-cellular deliveries of drugs of interest. Available now in models of single channel, two channel and four and eight channel, all units have a three year warranty. Incorporating state-of-the-art electronics, Toohey Company's pressure injection systems are based on more than 30 years experience in the life sciences fields of neuroscience, cell biology, spectroscopy and fluid delivery.

All units have a pulse duration resolution in 0.1 ms increments with digital display of time and are capable of picoliter or femtoliter injections. Volumes dispensed are linear with time and pressure. Systems are 19" rack-mounted and come complete with all necessary valves, tubing and connectors (pipette holders are optional) and a remote control.

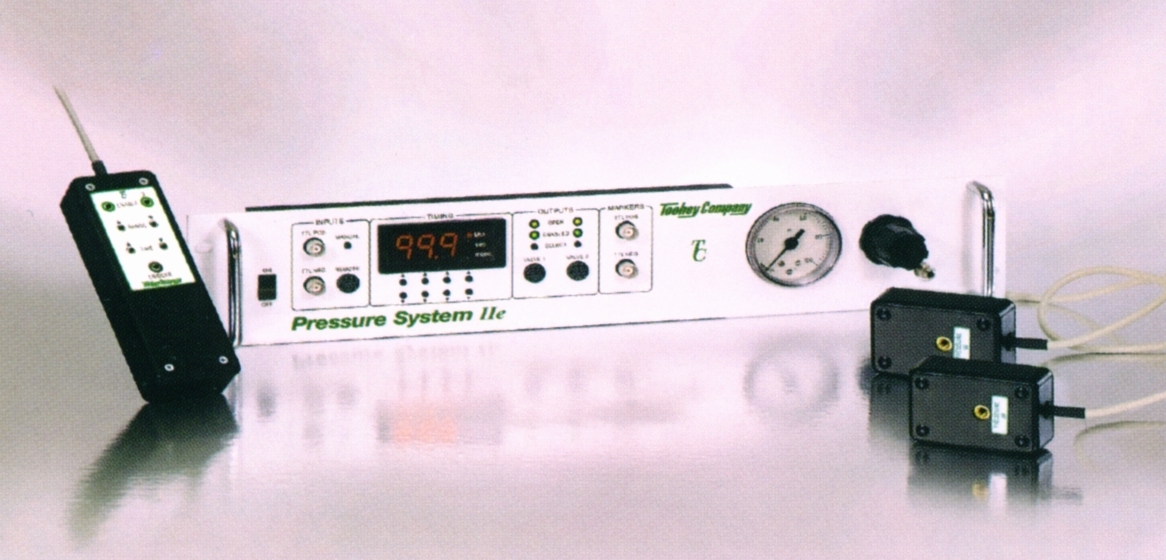

	Single Channel TooheySpritzer Reliable, economical, versatile and expandable to two channels. The basic Pressure System lIe incorporates digital display of pulse duration and is available in pressure ranges of 0-100PSI, 0-60PSI or 0-30PSI. Time ranges are in milliseconds, seconds and minutes. When used for intracellular or extracellular injections, the Pressure System IIe overcomes the inherent desensitization of nerve cells that accompanies iontophoretic methodology. Two channel "up grade" includes the remote valve and all the necessary tubing and fittings.

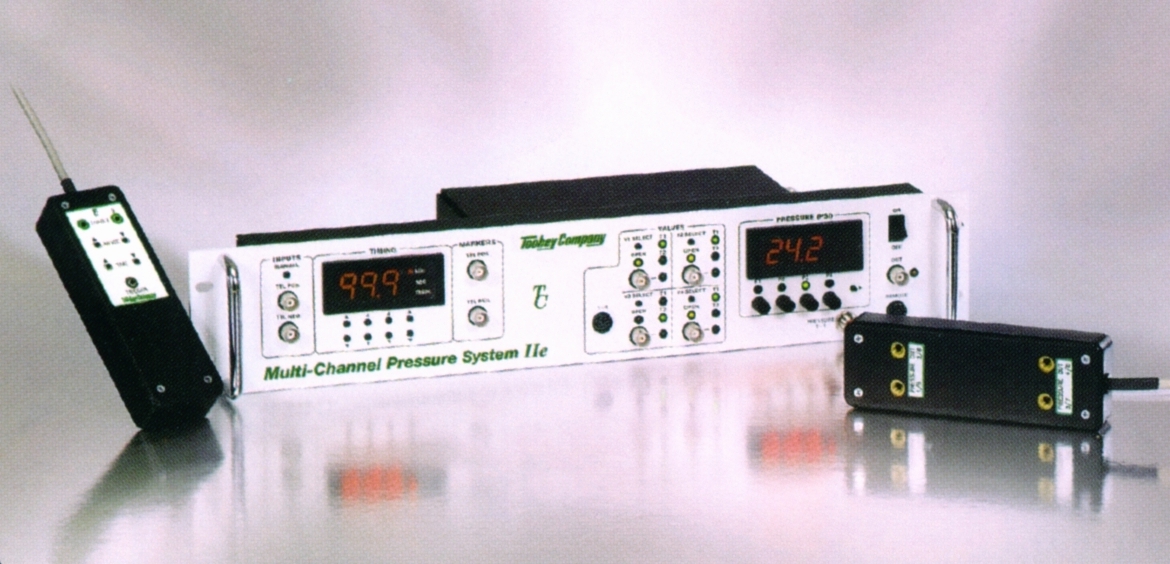

	Four Channel TooheySpritzer Pressure System IIe
	Four selectable and variable pressure settings with digital display of pressure from <1.0 PSI to 100PSI in 0.1 PSI resolution. Activate a single channel or all four simultaneously. Event marker TTL positive and TTL negative. Digital display of pulse durations in 0.1 ms resolution. Manual or TTL input plus included remote control to step-over pressure and trigger channels of choice. TTL event marker out. All valves, tubing and connectors included.

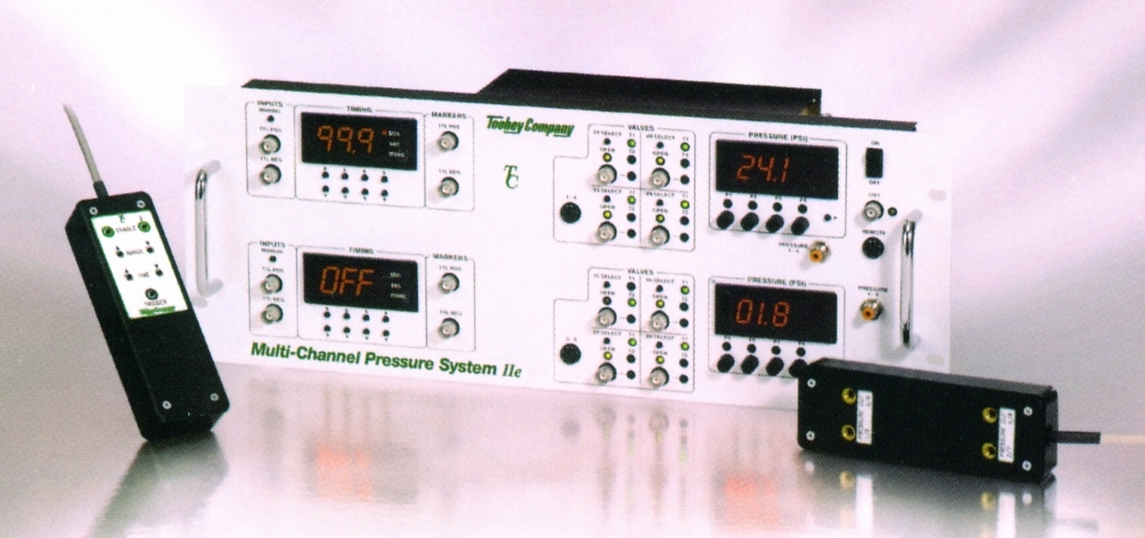

	Eight Channel TooheySpritzer Pressure System IIe
	Similar in features as the Four Channel with four additional channels. There are two independent timers and two independent pressure outlets. Eight separate valves, complete tubing and connectors and the remote control are included. Each four channel section has separate TTL (pos. and neg.) input and marker output (pos. and neg.) All valves can be triggered from a remote stimulator.
