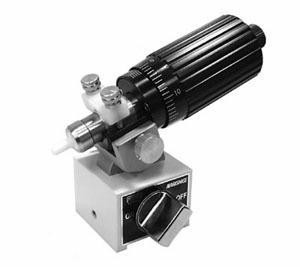

IM-9C

Microinjector

Narishige



Ideal for use on the holding side. Crisp response with air pressure control. Special large metal syringe provided.

Movement range:     Plunger 53 mm
                              Full rotation of knob approx.6mm
Control volume:        4240µl (full)
                              480µl (one rotation of knob)

Dimensions:             W 136-189 x D 55 x H 74 mm
Weight:                    0.64 kg
Accessories:            IM-H2 injection holder set**,
                               Silicon rubber gasket,
                               Silicone grease, O ring
                               Polyethylene tube.

      ** IM-H2 is a jointed set consisting of HI-7, CT-1 and CI-3.
