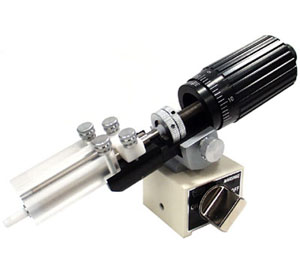

IM-9A/B

Microinjector

 Narishige




The IM-9A model is used when controlling large volumes with roughest movement. For precise movements, the control system uses air, designed for use on the holding side.

The IM-9B gives precise control of injection/ suction and is suitable for use on the injection side. Graduations are minimized, but fluid quantity can be read easily and accurately. In addition to the metal syringe, a high-precision glass syringe is provided, with highly polished inner and outer surfaces.
Both models can be attached to commercially available O.D. 7mm-14mm syringes.



   IM-9A  IM-9B

Accessories

IM-H2 injection holder set**, O ring, Silicone grease, polyethylene tube, Silicon rubber gasket,
 Allen wrench, CI-1 tube connector   (only IM-9A: Glass syringe1060µl)

Movement range

 Plunger 53 mm, Full rotation of knob 500µm

Control capacity

Total volumes 4240µl, Full rotation of knob approx. 40µl Total volumes 1060µl, Full rotation of knob
approx. 10µl

Dimensions

W 175-228 x D 55 x H 77 mm, 0.65 kg

** IM-H2 is a jointed set consisting of HI-7, CT-1 and CI-3.
