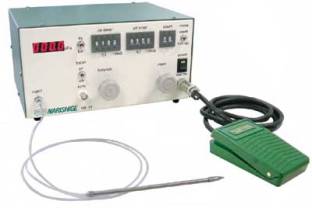

IM-31

Microinjector

Narishige




This device has 2 types of modes - a count mode to set the pressure / time / count and inject a solution and a foot switch mode to set only the pressure and inject a solution while pressing a foot switch - that can be selected in accordance with the experimental application. In addition, incremented settings are also possible when the count is set. Moreover, external control with the same action as the foot switch is possible via the input of TTL signals (negative logic).

 Accessories

Output Tube (with a tube connector / HI-7 Injection Holder)
Input Hose (with a hose connector)
AC Power Cord, Foot Switch
Silicone Rubber Gasket

 Input pressure

50 - 500kpa (0.05mpa - 0.5mpa = approx.7.25PSI - approx.72.5PSI)

 Time settings

10ms - 99.99s

 Count settings

1 - 99

 Interval settings

10ms - 99.99s

 Power source/Voltage

AC100 - AC240 (±5%), 50/60Hz

 Dimensions/Weight

W240 × D215 × H130mm, 4kg





To use this model a compressor or compressed gas tank and regulator is required.
