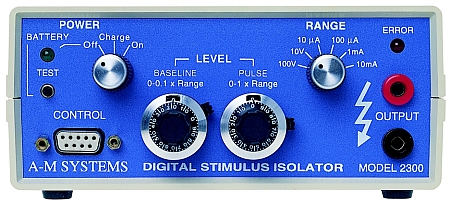

Model 2300

Digital Stimulus Isolator

A-M Systems





The Model 2300 Digital Stimulus Isolator is designed for a wide variety of stimulus applications. It provides opto-electrical isolation for TTL-compatible digital signals controlling the timing of preset levels.

Specifications
¤  Control software for IBM-PC Compatibles
    included
¤  Constant current and constant voltage
    source
¤  +/- 50 V maximum bipolar/biphasic output
    voltage
¤  5 mA maximum output current

  ¤  Wide bandwidth, DC to 40 kHz, < 10 µsec rise time (resistive loads)
  ¤  Uses only two rechargeable batteries and has a built-in recharger
  ¤  Opto-isolation
  ¤  Compact: 2.5” x 6” x 6.25”
  ¤  Low noise < 0.003% of full scale (150 pA rms in current modes)
  ¤  TTL-level controls


Includes:  Control Software for IBM-PC Compatible Computers;   6 Foot Cable with DB9 to DB25 Connectors; Battery Charger;  Instruction & Maintenance Manual
