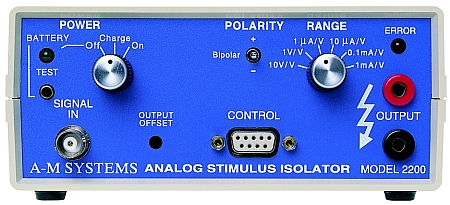

Model 2200

Analog Stimulus Isolator

A-M Systems




The Model 2200 Analog Stimulus Isolator is designed for a wide variety of applications. It provides opto-electrical isolation for stimuli generated by a wide range of signal sources. The signal is DC-coupled, and can take on any waveshape within its wide bandwidth.
Specifications
¤  Control software for IBM-PC Compatibles
    included
¤  Constant current and constant voltage source
¤  +/- 50 V maximum bipolar/biphasic output
    voltage
¤  5 mA maximum output current
¤  Opto-isolation
¤  Wide bandwidth, DC to 40 kHz, < 10 µsec
    rise time    (resistive loads)

¤  Uses only two rechargeable batteries and has a built-in recharger
¤  Compact: 2.5” x 6” x 6.25”
¤  Low noise < 0.003% of full scale, (150 pA rms in current modes)


Includes: Control Software for IBM-PC Compatible Computers; 6 Foot Cable with DB9 to DB25 Connectors; Zero Adjustment Tool; Battery Charger; Instruction & Maintenance Manual
